Same model may have multiple batches, images only for reference.

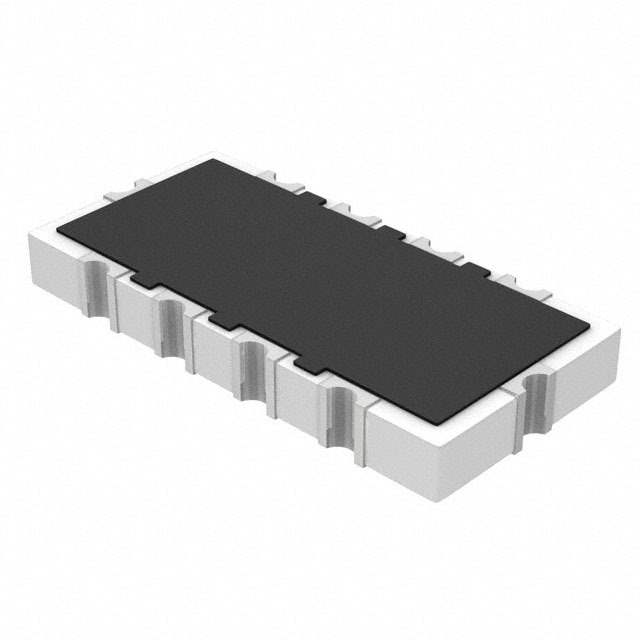

EZA-NT66AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-NT66AAAJ

Part No EZA-NT66AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 1 KOHM/1000PF SMD
Datasheet
EZA-NT66AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 1k
Values R = 1 kOhms, C = 1000pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.252" L x 0.122" W (6.40mm x 3.10mm)
Height 0.039" (1.00mm)
Win Source Part Number 112478-EZA-NT66AAAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-NT66AAAJ CAD Model

Description

Product Description

The EZA-NT66AAAJ is a premium component suited for high-frequency applications. It ensures stability and efficiency, enhancing the performance of complex electronic systems.

Features and Benefits

  • Optimized for high-frequency applications.
  • Stable performance over a wide range of frequencies.
  • Exceptional durability and longevity.

Applications

  • RF applications
  • Broadcasting equipment
  • Precision instrumentation
