Same model may have multiple batches, images only for reference.

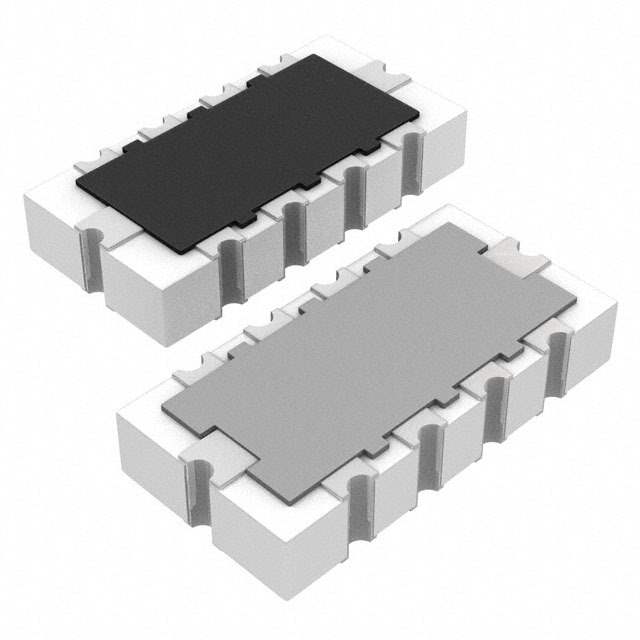

EZA-DT62AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DT62AAAJ

Part No EZA-DT62AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 1 KOHM/47PF SMD
Datasheet
EZA-DT62AAAJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 1k
Values R = 1 kOhms, C = 47pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.033" (0.85mm)
Win Source Part Number 110847-EZA-DT62AAAJ
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Imaging, Video & Vision, RF Communications, Industrial, Multimedia
Ultra Librarian 3D Model Ultra Librarian EZA-DT62AAAJ CAD Model

Description

Description

The EZA-DT62AAAJ is crafted to serve a broad array of electronic functions, enhancing both the efficiency and the lifespan of devices. Its precise design ensures consistent performance under various conditions.

Features and Benefits

  • Precision engineering for consistent, reliable performance.
  • Long-lasting durability reduces need for replacements.
  • Environmentally friendly components minimize impact.

Applications and Projects

  • Robotics: Essential for robotic control and automation.
  • Power Management: Optimizes distribution and usage in systems.
  • Consumer Appliances: Integral for modern smart appliances.
