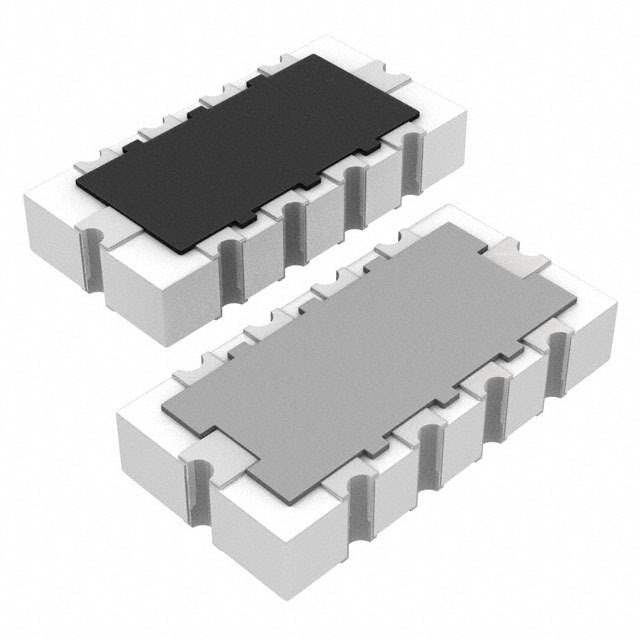

EZA-DT11AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DT11AAAJ

Part No EZA-DT11AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 22 OHM/22PF SMD
Datasheet
EZA-DT11AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 22
Values R = 22 Ohms, C = 22pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.033" (0.85mm)
Win Source Part Number 096686-EZA-DT11AAAJ
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EZA-DT11AAAJ CAD Model

Description

EZA-DT11AAAJ

The EZA-DT11AAAJ is a versatile and efficient electronic component designed to cater to a diverse range of applications. With its robust structure and advanced functionalities, it offers high reliability and excellent performance.

  • Applications:
    • Industrial automation systems
    • Smart home devices
    • Renewable energy projects
    • Communication equipment

Features and Benefits:

  • Compact design for easy integration
  • Energy-efficient operation
  • Wide operating temperature range
  • Enhanced durability and long lifespan

Additional Details: This component stands out for its ability to maintain optimal performance under varying conditions, making it ideal for use in environments that demand high reliability.
