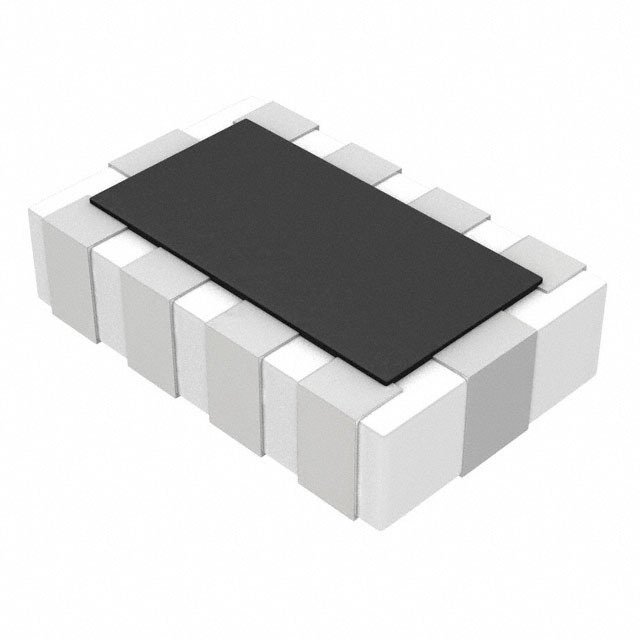

Same model may have multiple batches, images only for reference.
EZA-CT20AAAJ Panasonic
Same model may have multiple batches, images only for reference.

EZA-CT20AAAJ

Part No EZA-CT20AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 47 OHM/10PF SMD
Datasheet
EZA-CT20AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 4
Resistance - Channel (Ohms) 47
Values R = 47 Ohms, C = 10pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.026" (0.65mm)
Win Source Part Number 105820-EZA-CT20AAAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-CT20AAAJ CAD Model

Description

The EZA-CT20AAAJ is designed to deliver exceptional reliability and efficiency, tailored for high-performance tasks.

Key Features and Benefits:

  • Efficient Power Use: Maximizes energy savings and minimizes heat generation.
  • Versatile Configuration: Adaptable to a range of electronic setups.
  • Rugged Design: Built for extreme conditions and extended use.

Applications:

  • Renewable Energy Systems
  • Smart Grids
  • Data Center Technology
  • Mobile Communications

Engineers looking for cutting-edge solutions will find the EZA-CT20AAAJ meets their complex requirements.
