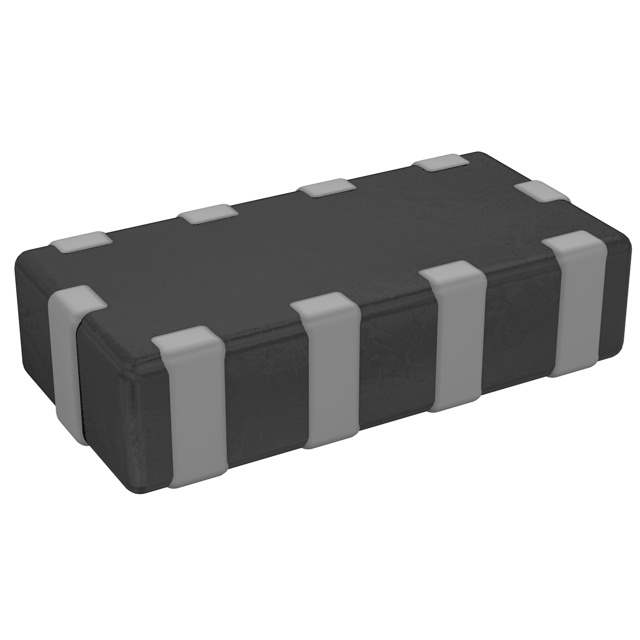

EXC-18CS900U Real Image
Same model may have multiple batches, images only for reference.

EXC-18CS900U

Part No EXC-18CS900U
Manufacturer Panasonic
Catalog Common Mode Chokes
Description CMC 100MA 4LN 90 OHM SMD ESD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 3 Ohm (Typ)
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Features ESD
Mounting SMD (SMT)
Height (Max) 0.020" (0.50mm)
Dimension 0603 (1608 Metric)
Win Source Part Number 100225-EXC-18CS900U
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian EXC-18CS900U CAD Model

Description

EXC-18CS900U: Cutting-Edge and Compact

The EXC-18CS900U combines cutting-edge technology with a compact form, ensuring it meets the demands of modern electronic applications.

  • Advanced technological integration
  • Space-saving design
  • Reliable across a range of applications

Applications and Projects:

  • Wearable technology
  • R&D prototypes
  • Portable electronic devices
