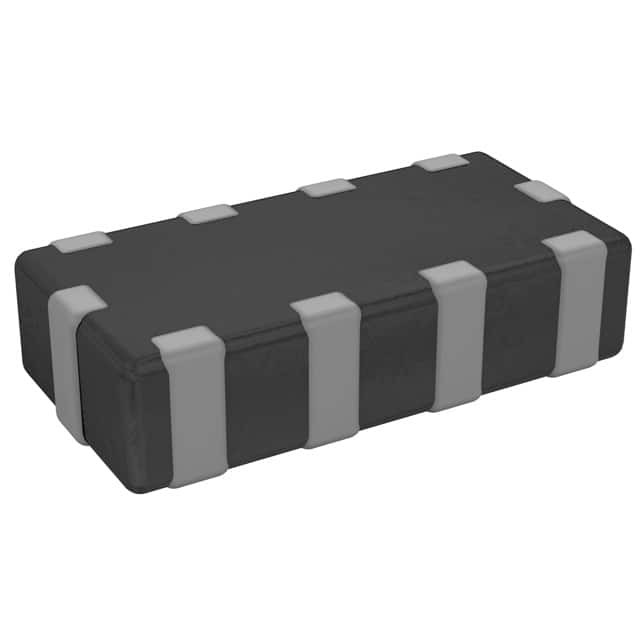

Same model may have multiple batches, images only for reference.
EXC-18CE650U
Same model may have multiple batches, images only for reference.

EXC-18CE650U

Part No EXC-18CE650U
Manufacturer Panasonic
Catalog Common Mode Chokes
Description CMC 140MA 4LN 65 OHM SMD / 4 Line Common Mode Choke Surface Mount 65 Ohms @ 100 MHz 140mA DCR 1.8Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Panasonic
Series EXC18
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 65 Ohms @ 100 MHz
Current Rating (Max) 140mA
DC Resistance (DCR) (Max) 1.8Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.020" (0.50mm)
Package / Case 0603 (1608 Metric)
Base Product Number EXC-18
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 871330-EXC-18CE650U
Ultra Librarian 3D Model Ultra Librarian EXC-18CE650U CAD Model

Description

The 871330-EXC-18CE650U is a common mode choke filter designed for signal line applications.

  • Manufacturer: Panasonic
  • Application: Signal Line Filtering
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Voltage Rating: 5V DC
  • Impedance: 65 Ohms @ 100 MHz
  • DC Resistance: 1.8 Ohm
  • Mounting: Surface Mountable
  • Package/Case: 0603 (1608 Metric)
  • Operating Temperature Range: -40°C to 85°C
  • Status: Active
