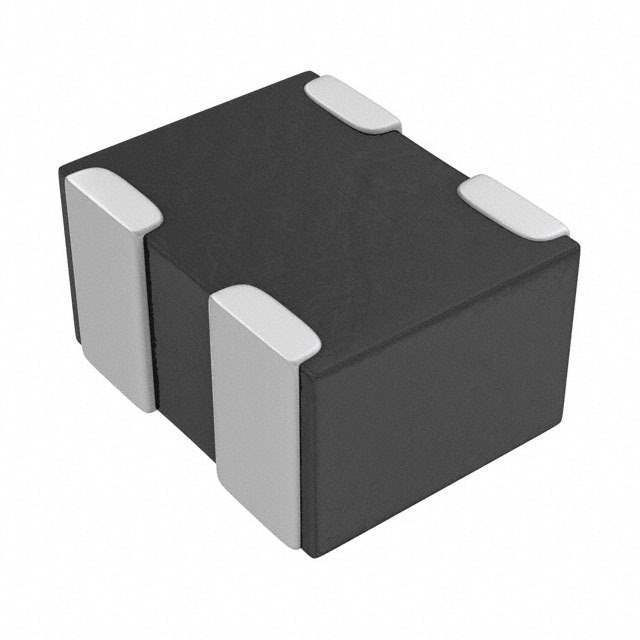

EXC-14CH120U Panasonic Electronic Components
Same model may have multiple batches, images only for reference.

EXC-14CH120U

Part No EXC-14CH120U
Manufacturer Panasonic
Catalog Common Mode Chokes
Description CMC 100MA 2LN 12 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Manufacturer Panasonic Electronic Components
Series EXC14
Part Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 12 Ohms @ 100 MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 1Ohm
Voltage Rating - DC 5V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.033" L x 0.026" W (0.85mm x 0.65mm)
Ultra Librarian 3D Model Ultra Librarian EXC-14CH120U CAD Model

Description

2 Line Common Mode Choke Surface Mount 12 Ohms @ 100 MHz 100mA DCR 1Ohm
