Same model may have multiple batches, images only for reference.

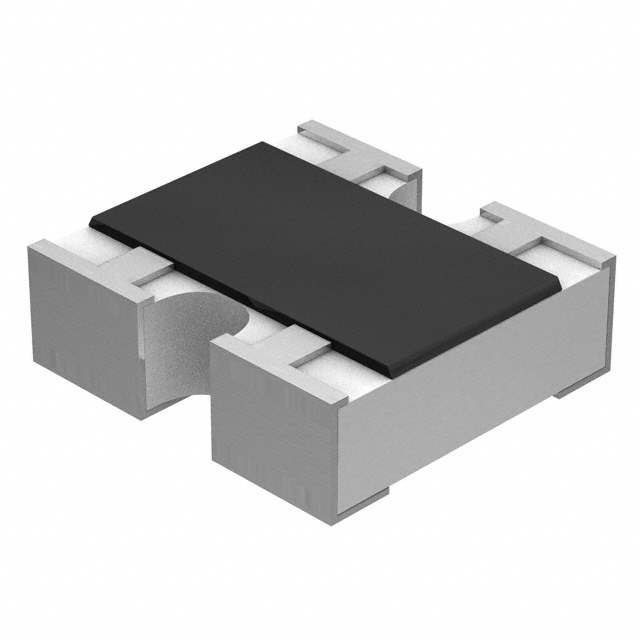

EXB-24V820JX Real Image
Same model may have multiple batches, images only for reference.

EXB-24V820JX

Part No EXB-24V820JX
Manufacturer Panasonic
Catalog Resistor Networks, Arrays
Description RES ARRAY 2 RES 82 OHM 0404
Datasheet
EXB-24V820JX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit Type Isolated
Resistance (Ohms) 82
Tolerance ±5%
Number of Resistors 2
Number of Pins 4
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 125°C
Applications Automotive AEC-Q200
Mounting SMD (SMT)
Case / Package 0404
Height - Seated (Max) 0.018" (0.45mm)
Win Source Part Number 105584-EXB-24V820JX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EXB-24V820JX CAD Model

Description

Product Features and Benefits

  • Superior quality with long-term stability.
  • Useful in high-frequency applications due to its low inductance design.
  • Highly resistant to heat and corrosion.

Applications

  • High-frequency telecommunication equipment.
  • Instrumentation and measuring devices.
  • Aerospace and defense applications.

The EXB-24V820JX is crafted for high-frequency applications, offering durability and superior performance under challenging conditions.
