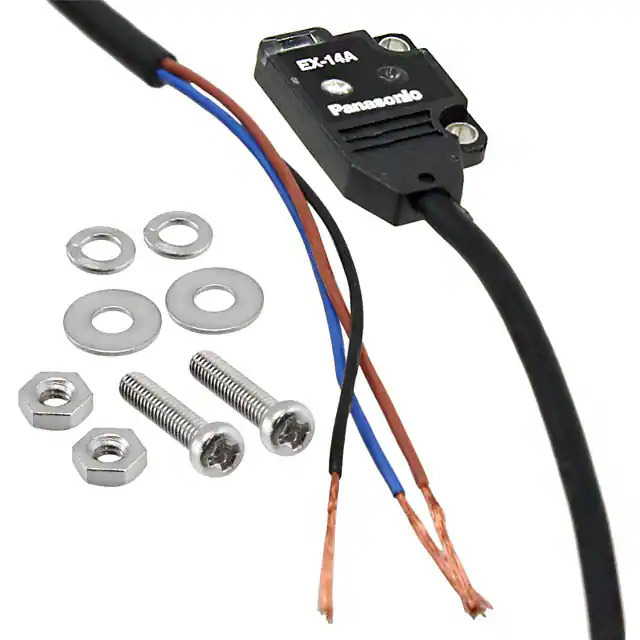

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photoelectric, Industrial
Mfr Panasonic Industrial Automation Sales
Series EX-10
Package Box
Product Status Active
Sensing Method Reflective, Diffuse
Sensing Distance 0.079" ~ 0.984" (2mm ~ 25mm) ADJ
Voltage - Supply 12V ~ 24V
Response Time 500µs
Output Configuration NPN - Open Collector
Light Source Red LED
Connection Method Cable
Ingress Protection IP67
Cable Length 78.74" (2m)
Adjustment Type -
Temperature Range - Operating -25°C ~ 55°C
Base Product Number EX-14
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1375665-EX-14A
Ultra Librarian 3D Model Ultra Librarian EX-14A CAD Model

Description

The EX-10 series photoelectric sensor from Panasonic Industrial Automation Sales is a reliable and versatile sensor for industrial applications.

  • Operating Temperature: -25°C ~ 55°C
  • Ingress Protection: IP67
  • Voltage - Supply: 12V ~ 24V
  • Response Time: 500µs
  • Sensing Distance: 2mm ~ 25mm Adjustable
  • Light Source: Red LED
  • Output Configuration: NPN - Open Collector
  • Connection Method: Cable
  • Cable Length: 2m
