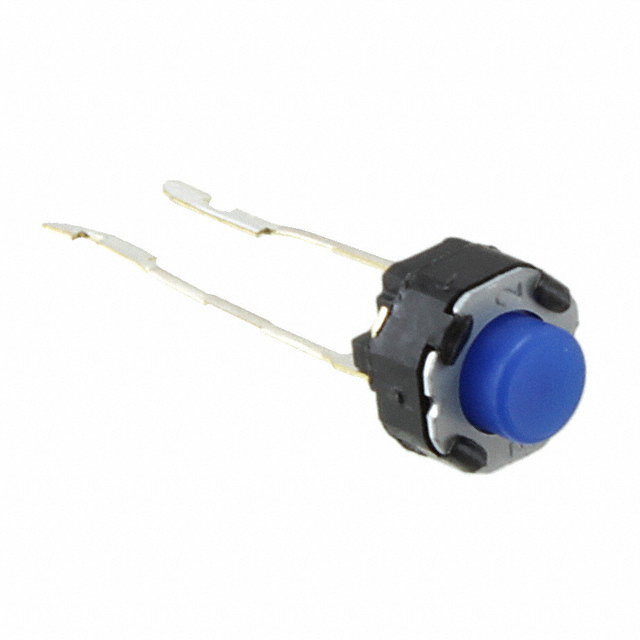

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Not For New Designs
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Round Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.10mm x 6.00mm
Illumination Non-Illuminated
Operating Force 300gf
Temperature Range - Operating -40°C ~ 90°C
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1563627-EVP-ASEC1A
Ultra Librarian 3D Model Ultra Librarian EVP-ASEC1A CAD Model
