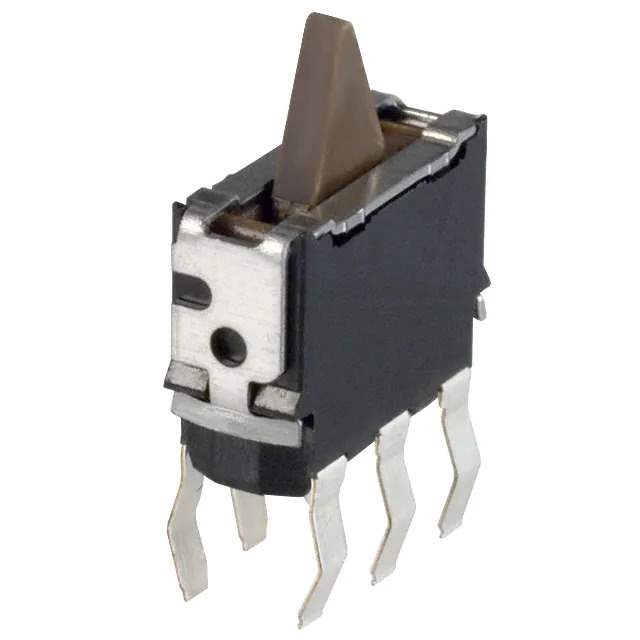

ESE-24SV3 Real Image
Same model may have multiple batches, images only for reference.

ESE-24SV3

Part No ESE-24SV3
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPDT 10MA 5V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Panasonic
Series ESE24
Package Bulk
Product Status Active
Circuit SPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Through Hole
Termination Style PC Pin
Operating Force 35gf
Operating Position 0.317" (8.05mm)
Temperature Range - Operating -10°C ~ 70°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-24
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 844220-ESE-24SV3
Ultra Librarian 3D Model Ultra Librarian ESE-24SV3 CAD Model

Description

The ESE-24SV3 series limit switch is a versatile component designed for use in various electrical circuits.

  • Series: ESE-24SV3
  • Type: Limit Switch
  • Voltage Rating: 5VDC
  • Current Rating: 10mA (DC)
  • Switch Configuration: SPDT
  • Operating Force: 35gf
  • Mechanical Life: 50,000 cycles
  • Actuator Type: Angled Toggle
  • Mounting: Through-Hole
  • Temperature Range: -10°C to 70°C
  • Manufacturer: Panasonic
