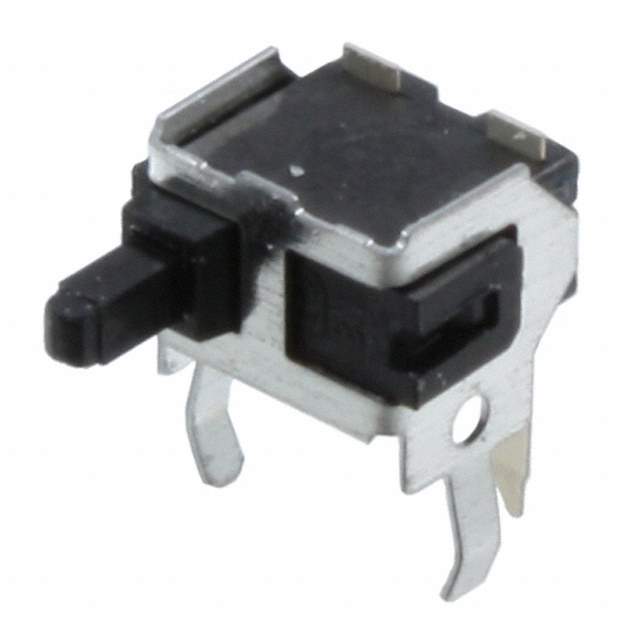

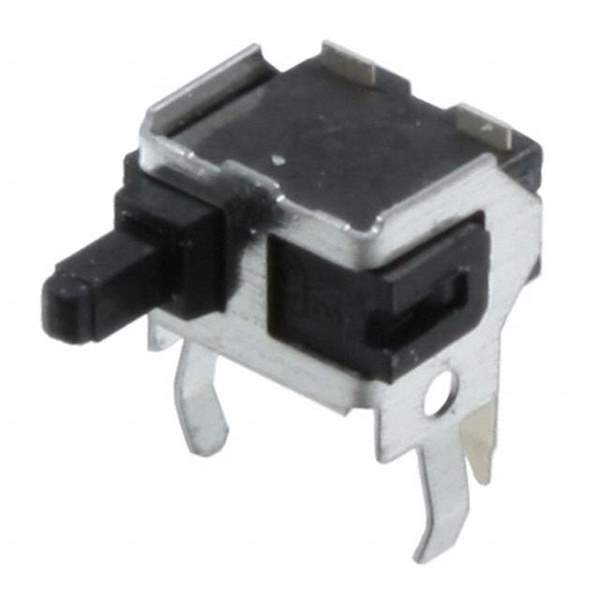

ESE-11SH2C Real Image
Same model may have multiple batches, images only for reference.

ESE-11SH2C

Part No ESE-11SH2C
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 10MA 5V / Switch SPST-NO Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Panasonic Electronic Components
Series ESE11
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Overtravel Plunger
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Operating Force 35gf
Temperature Range - Operating -10°C ~ 70°C
Operating Position 0.183" (4.65mm)
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names P10863S-NDR,P10863S,ESE11SH2C,Q1261138
Standard Package 200
Win Source Part Number 984088-ESE-11SH2C
Ultra Librarian 3D Model Ultra Librarian ESE-11SH2C CAD Model

Description

The ESE11SH2C is a SPST-NO limit switch from Panasonic Electronic Components.

  • Actuator Type: Overtravel Plunger
  • Operating Force: 35gf
  • Electrical and Mechanical Life: 50,000 cycles
  • Switch Function: Off-Mom
  • Operating Position: 0.183"
  • Mounting: Through Hole
  • Termination Style: Right-Angle
  • Voltage Rating: 5V DC
  • Current Rating: 10mA DC
  • Series: ESE11
