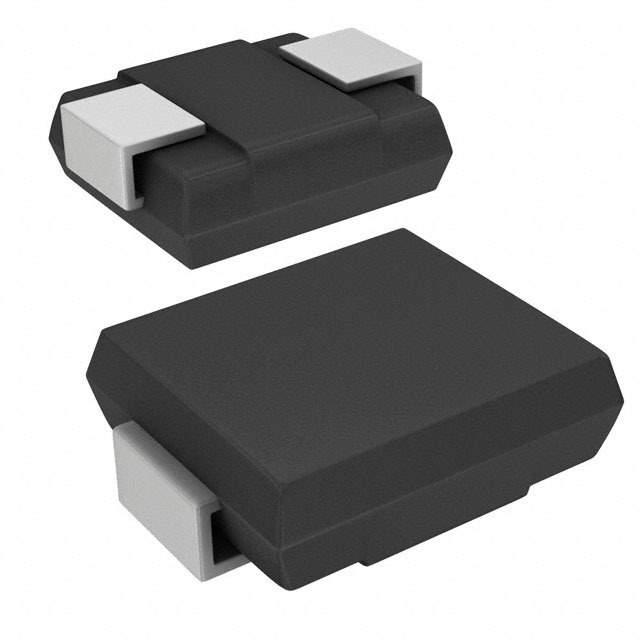

The ERZVF2M431 is a Transient Voltage Suppressor (TVS) varistor manufactured by Panasonic. It is designed to protect sensitive electronic equipment from voltage surges caused by lightning, inductive load switching, electrostatic discharge (ESD), and other transient voltage events. This varistor is part of the ERZV series, known for their high surge current capability and reliable performance.

Applications

• Power supplies
• Consumer electronics
• Industrial equipment
• Telecommunications systems
• Lighting systems

Features

• High surge current capability
• Wide operating voltage range
• Fast response time to transient events
• Excellent clamping characteristics
• RoHS compliant

Benefits

• Protection against overvoltage transients
• Improved reliability of electronic equipment
• Reduced downtime due to voltage surges
• Extended lifespan of sensitive components
• Compliance with industry safety standards

Additional Details

The ERZVF2M431 varistor has a maximum surge current rating, clamping voltage, and energy handling capability tailored for specific applications. Its construction involves a metal oxide ceramic material that exhibits a non-linear resistance, allowing it to shunt excess current during voltage surges. The varistor's voltage-current characteristics provide effective protection without significantly affecting normal circuit operation.

Its compact size and robust construction make it suitable for various mounting configurations, including through-hole and surface mount. The ERZVF2M431 is commonly used in conjunction with other protection components to provide comprehensive surge protection.

Panasonic's ERZV series of varistors are known for their stability and long-term reliability. The ERZVF2M431 provides a cost-effective solution for protecting electronic devices and systems from the damaging effects of voltage transients.
