Same model may have multiple batches, images only for reference.

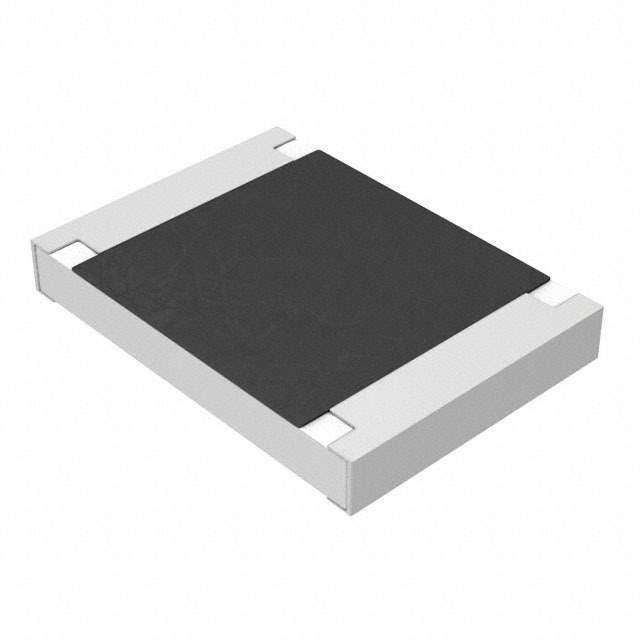

ERJ-L12KF50MU Real Image
Same model may have multiple batches, images only for reference.

ERJ-L12KF50MU

Part No ERJ-L12KF50MU
Manufacturer Panasonic
Catalog Chip Resistor - Surface Mount
Description RES 0.05 OHM 1% 1/2W 1812  /  50 mOhms ±1% 0.5W, 1/2W Chip Resistor 1812 (4532 Metric) Automotive AEC-Q200, Current Sense Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Panasonic Electronic Components
Series ERJ-L12
Package Tape & Reel
Resistance 50 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Ratings AEC-Q200
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number ERJ-L12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names ERJL12KF50MU,P.050NBCT-ND,P50NBTR,P.050NBTR,P50NBTR-NDR,P50NBDKR,P.050NBTR-ND,P50NBCT,P50NBCT-NDR,Q4471606ZZZ,P.050NBCT
Standard Package 5,000
Win Source Part Number 1132101-ERJ-L12KF50MU
Ultra Librarian 3D Model Ultra Librarian ERJ-L12KF50MU CAD Model

Description

The ERJ-L12KF50MU is a surface mountable chip resistor that is part of the ERJ-L12 series from Panasonic Electronic Components.

  • Mounting Type: Surface Mount
  • Series: ERJ-L12
  • Packaging: Tape and reel
  • Seated Height: 0.028 inches
  • Standard Package: 5,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Ratings: AEC-Q200
  • Application: Suitable for current sense applications
  • Power Rating: 0.5W or 1/2W
  • Composition: Thick film
  • Terminations: 2
  • Resistance: 50 mOhms
  • Package/Case: 1812 (4532 Metric)
  • Supplier Device Package: 1812
  • Operating Temperature Range: -55°C to 125°C
