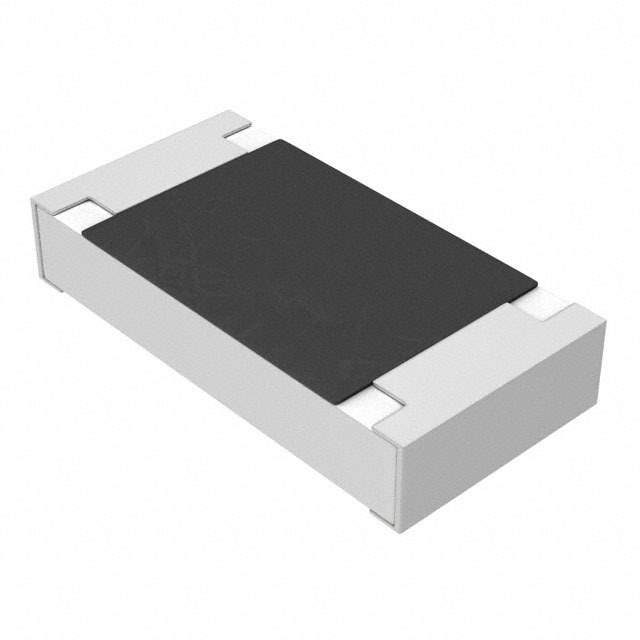

The ERJ-8GEYJ103V is a thick film chip resistor from Panasonic, designed for surface mount applications. It offers reliable performance and stable resistance values in a compact package.

Applications

• Consumer Electronics: Commonly used in televisions, audio equipment, and mobile devices for current limiting, voltage division, and pull-up/pull-down resistor functions.
• Industrial Equipment: Employed in industrial control systems, power supplies, and measurement instruments where precision and stability are critical.
• Automotive Electronics: Used in automotive control units (ECUs), sensors, and lighting systems, ensuring reliable operation under harsh conditions.
• Medical Devices: Found in medical monitoring equipment, diagnostic tools, and therapeutic devices, providing accurate and stable electronic control.
• Communication Equipment: Integrated into network devices, telecom infrastructure, and wireless communication systems for signal conditioning and impedance matching.

Features

• High Reliability: Manufactured using high-quality materials and processes to ensure long-term stability.
• Compact Size: Standard 1206 package (3.2mm x 1.6mm) for space-saving designs.
• Excellent Temperature Stability: Low temperature coefficient of resistance (TCR) for stable performance across a wide temperature range.
• RoHS Compliant: Environmentally friendly and compliant with RoHS standards.
• Superior Surge Resistance: Designed to withstand surge events, enhancing circuit protection.

Benefits

• Precise Resistance Value: Provides accurate and consistent resistance, ensuring proper circuit operation.
• Space Efficient: Small package size allows for high-density circuit layouts.
• Long-Term Stability: Maintains resistance value over time, reducing the need for frequent replacements.
• Wide Operating Temperature Range: Operates reliably in diverse environmental conditions.
• Easy to Solder: Designed for easy and reliable surface mount soldering processes.

Additional Details

The ERJ-8GEYJ103V has a resistance value of 10 kΩ with a tolerance of ±5%. The rated power dissipation is 0.25W (1/4W). The operating temperature range is typically -55°C to +155°C. The resistor is constructed using a thick film resistive element on an alumina substrate, with a protective overcoat. The terminations are solder-plated, ensuring excellent solderability and resistance to solder leaching. This resistor is suitable for general-purpose applications where precision, stability, and compact size are essential.
