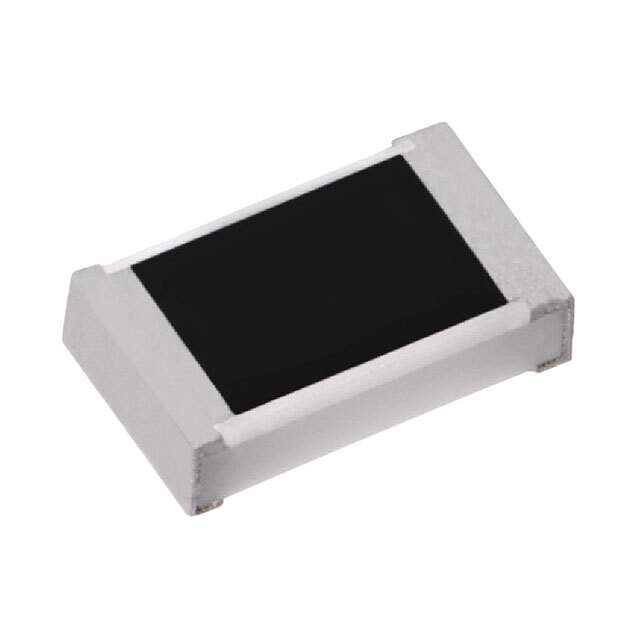

ERA-6VRW1003V Real Image
Same model may have multiple batches, images only for reference.

ERA-6VRW1003V

Part No ERA-6VRW1003V
Manufacturer Panasonic
Catalog Chip Resistor - Surface Mount
Description RES 100K OHM 0.05% 1/4W 0805 / 100 kOhms ±0.05% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Panasonic Electronic Components
Series ERA-6V
Package Tape & Reel
Resistance 100 kOhms
Tolerance ±0.05%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number ERA-6VRW
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351957-ERA-6VRW1003V
Ultra Librarian 3D Model Ultra Librarian ERA-6VRW1003V CAD Model

Description

The ERA-6V series chip resistor is a highly reliable and anti-sulfur resistor that is ideal for automotive applications.

  • Resistance: 100 kOhms
  • Power Rating: 0.25W
  • Tolerance: ±0.05%
  • Temperature Coefficient: ±10ppm/°C
  • AEC-Q200 Rated: Yes
  • Temperature Range: -55°C to 155°C
  • Packaging: Tape and Reel
  • Standard Package: 5,000
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Seated Height: 0.026" (0.65mm)
