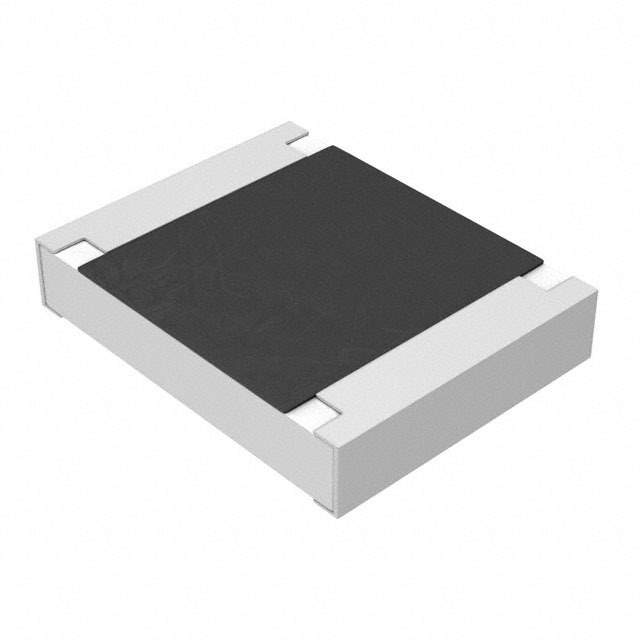

ERA-14HD560U Real Image
Same model may have multiple batches, images only for reference.

ERA-14HD560U

Part No ERA-14HD560U
Manufacturer Panasonic
Catalog Chip Resistor - Surface Mount
Description RES SMD 56 OHM 0.5% 1/4W 1210 / 56 Ohms ±0.5% 0.25W, 1/4W Chip Resistor 1210 (3225 Metric) Thin Film
Datasheet
ERA-14HD560U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Panasonic Electronic Components
Series ERA-14
Package Tape & Reel
Product Status Obsolete
Resistance 56 Ohms
Tolerance ±0.5%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number ERA-14
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names ERA14HD560U,P56APTR,P56APCT,P56APDKR
Standard Package 5,000
Win Source Part Number 1057406-ERA-14HD560U
Ultra Librarian 3D Model Ultra Librarian ERA-14HD560U CAD Model

Description

The Panasonic ERA-14HD560U is a chip resistor with a resistance of 56 ohms and a power rating of 0.25W (1/4W). It has a tolerance of ±0.5% and a temperature coefficient of ±50ppm/°C. This thin film resistor has two terminations and comes in a 1210 (3225 Metric) package/case. It is suitable for use in resistors>chip resistor - surface mount applications. The resistor is supplied in tape and reel packaging, with a standard package of 5,000. The ERA-14 series is known for its reliability and high performance. It is obsolete but has alternative parts, such as RT1210DRE0756RL, RT1210DRE0751RL, ERJ-14YJ560U, ERJ-P14J560U, ERJP14F56R0U, CRCW121056R0JNEAERA14HD560U, among others.
