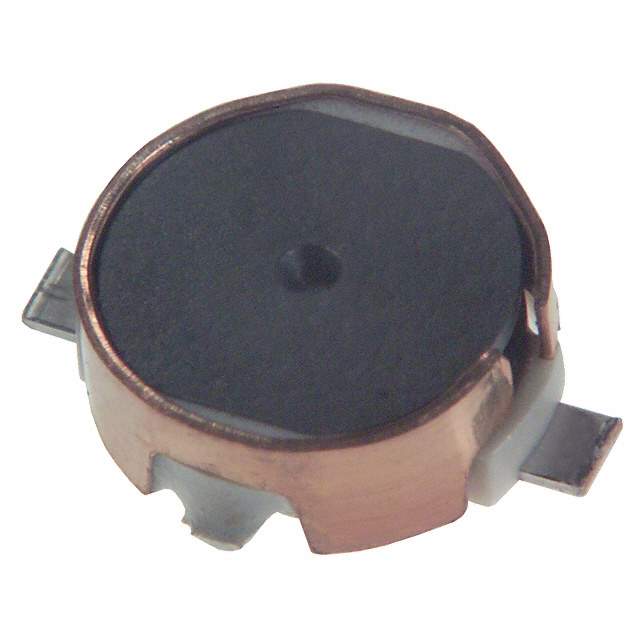

Same model may have multiple batches, images only for reference.

ELT-5KN120C

Get a Quote

Part No	ELT-5KN120C
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 2.7MH 35MA 33 OHM SMD / 2.7 mH Unshielded Wirewound Inductor 35 mA 33Ohm Nonstandard
Datasheet	ELT-5KN120C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Panasonic Electronic Components
Series	5KN
Package	Tape & Reel
Product Status	Obsolete
Type	Wirewound
Inductance	2.7 mH
Tolerance	±10%
Current Rating (Amps)	35 mA
Shielding	Unshielded
DC Resistance (DCR)	33Ohm
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	ELT-5KN
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	PCD1555TR-NDR,PCD1555DKR,ELT5KN120C,PCD1555TR,PCD1555CT-NDR,PCD1555CT,PCD1555DKR-NDR
Standard Package	4,000
Win Source Part Number	1057125-ELT-5KN120C
Ultra Librarian 3D Model	Ultra Librarian ELT-5KN120C CAD Model

Alternative Products

Description

The ELT-5KN120C is a fixed wirewound inductor from Panasonic Electronic Components. ELT-5KN120C is manufactured by Panasonic Electronic Components.

Type: Fixed Wirewound Inductor
Inductance: 2.7mH
Tolerance: ±10%
DC Resistance: 33Ω
Current Rating: 35mA
Technology: SMT (Surface Mount Technology)
Package: Nonstandard
Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height: 0.079" (2.00mm)
Alternative Parts: 9250A-275-RC, AIAP-01-272K-T, SDR0805-272KL, 5800-272-RC, AIUR-06-272K, and AIUR-10-272KELT5KN120C
