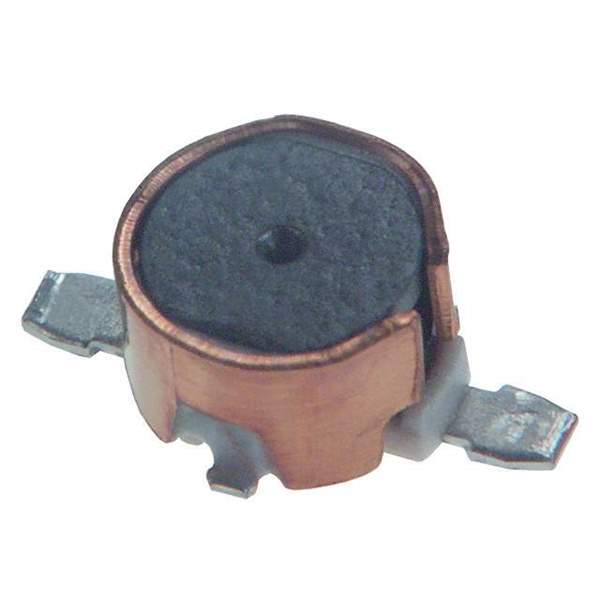

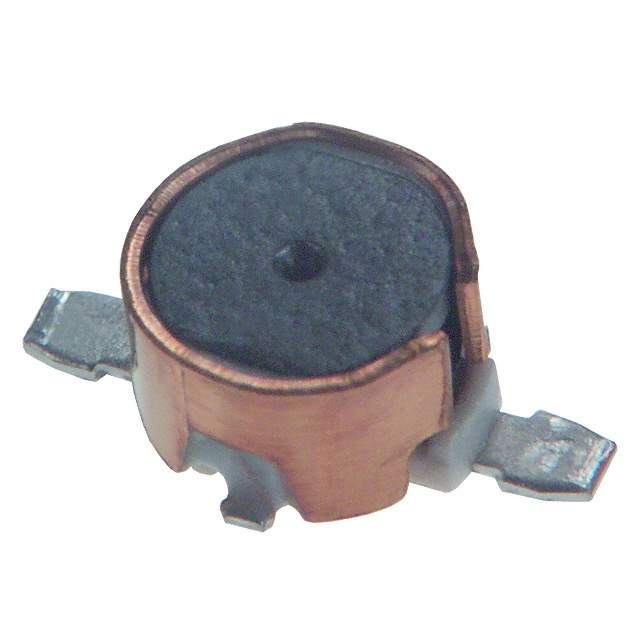

Same model may have multiple batches, images only for reference.

ELT-3KN131B

Name: ELT-3KN131B
Brand: Panasonic
SKU: 965947
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ELT-3KN131B
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 2MH 20MA 44 OHM SMD / 2 mH Unshielded Drum Core, Wirewound Inductor 20 mA 44Ohm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Panasonic Electronic Components
Series	3KN
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2 mH
Tolerance	±10%
Current Rating (Amps)	20 mA
Shielding	Unshielded
DC Resistance (DCR)	44Ohm
Temperature Range - Operating	-20°C ~ 85°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.130" L x 0.130" W (3.30mm x 3.30mm)
Height - Seated (Max)	0.087" (2.20mm)
Base Product Number	ELT-3KN
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	PCD1401DKR-NDR,PCD1401DKR,ELT3KN131B,PCD1401TR,PCD1401TR-NDR,PCD1401CT-NDR,PCD1401CT
Standard Package	1,000
Win Source Part Number	965947-ELT-3KN131B
Ultra Librarian 3D Model	Ultra Librarian ELT-3KN131B CAD Model

Alternative Products

Description

Panasonic Electronic Components' 965947-ELT-3KN131B is a fixed inductor that is widely used in electronic devices.

Series: 3KN
Core Type: Drum Core
Type: Wirewound
Packaging: Tape & Reel
Shielding: Unshielded
Inductance: 2 mH
Tolerance: ±10%
DC Resistance (DCR): 44Ohm
Current: 20mA
Height: 0.087" (2.20mm)
Package/Case: Nonstandard
Core Material: Ferrite
Operating Temperature: -20°C to 85°C
Dimension: 0.130" L x 0.130" W (3.30mm x 3.30mm)
ECCN: EAR99
REACH: Unaffected
