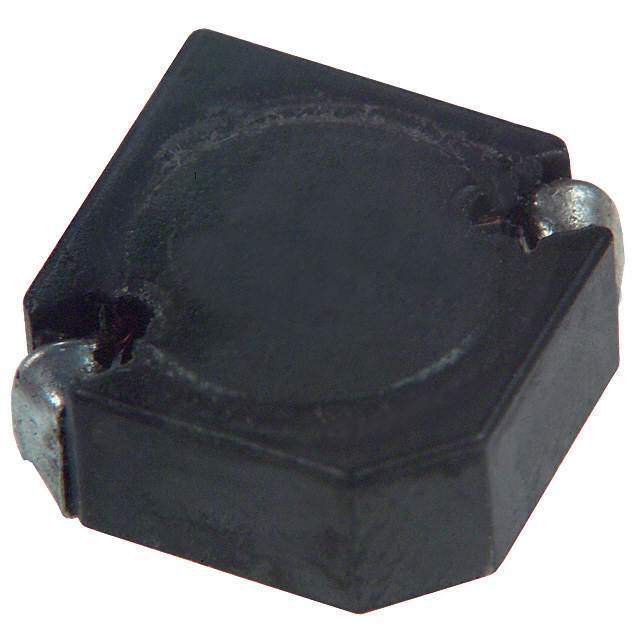

ELL-ATV220M

Part No ELL-ATV220M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 22UH 2.2A 45 MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 2.2 A 45mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Panasonic Electronic Components
Series V
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Shielding Shielded
DC Resistance (DCR) 45mOhm
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number ELL-ATV
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names PCD1752CT,PCD1752TR,PCD1752CT-NDR,PCD1752TR-NDR,PCD1752DKR,ELLATV220M
Standard Package 500
Win Source Part Number 1114918-ELL-ATV220M
Ultra Librarian 3D Model Ultra Librarian ELL-ATV220M CAD Model

Description

The Panasonic Electronic Components ELL-ATV220M is a fixed inductor that is used in various electronic devices.

  • Height: 0.177 inches
  • Width: 0.394 inches
  • Supply and demand status: Obsolete
