Same model may have multiple batches, images only for reference.

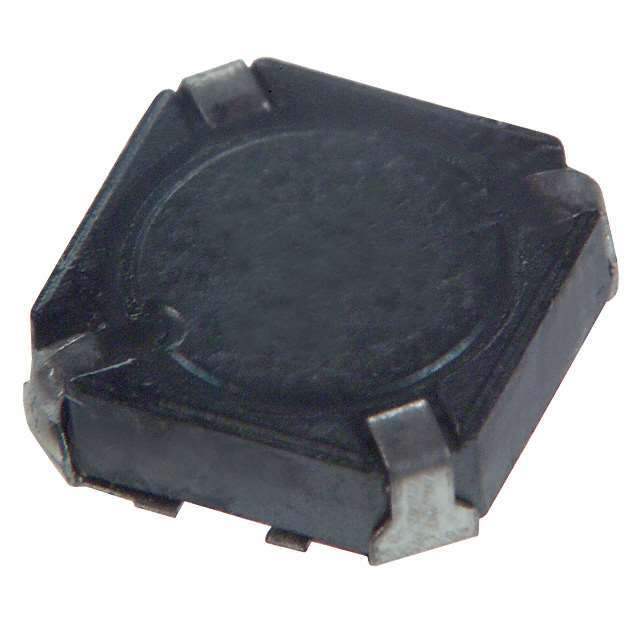

ELL-6PM4R7N Real Image
Same model may have multiple batches, images only for reference.

ELL-6PM4R7N

Part No ELL-6PM4R7N
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.68A 47 MOHM
Datasheet
ELL-6PM4R7N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 4.7μH
Tolerance ±30%
Current Rating 1.68A
DC Resistance (DCR) 47 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 106957-ELL-6PM4R7N
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELL-6PM4R7N CAD Model

Description

Feature Overview

The ELL-6PM4R7N power inductor features a high inductance value and low saturation resistance, making it ideal for applications needing significant energy conversion and management.

Applications

  • Smart grid technology
  • Energy-efficient home appliances
  • Advanced robotics
  • High-performance computing

Features and Benefits

  • High Inductance Value: Suitable for storing large amounts of energy with minimal losses.
  • Low Core Loss: Ensures energy efficiency, reducing heat generation and increasing longevity.
  • Rugged Design: Built to withstand mechanical shocks and vibrations often found in industrial environments.

Additional Details

The ELL-6PM4R7N is designed to deliver reliable, high-performance operation in demanding applications, offering exceptional value and efficiency.
