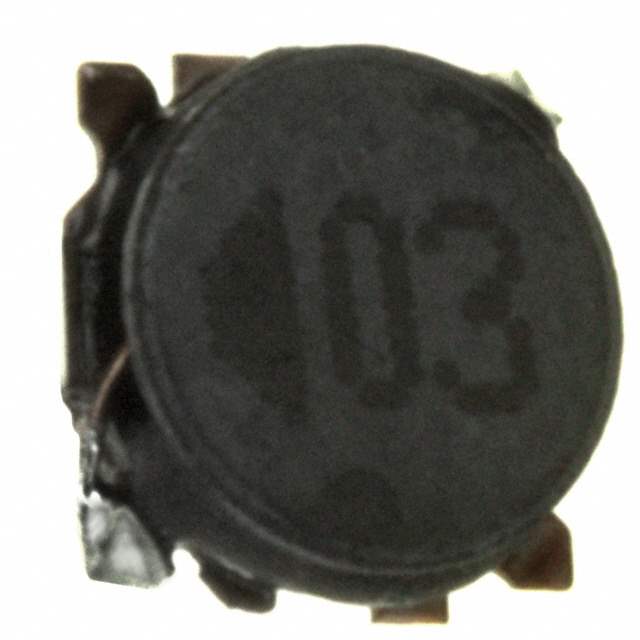

ELL-4GG1R8N Real Image
Same model may have multiple batches, images only for reference.

ELL-4GG1R8N

Part No ELL-4GG1R8N
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 1.8UH 1.55A 71 MOHM
Datasheet
ELL-4GG1R8N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 1.8μH
Tolerance ±30%
Current Rating 1.55A
Current - Saturation 1.9A
DC Resistance (DCR) 71 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 097137-ELL-4GG1R8N
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ELL-4GG1R8N CAD Model

Description

ELL-4GG1R8N Inductor

The ELL-4GG1R8N inductor is crafted to excel in various electronic applications, offering superior stability and minimal energy dissipation. This reliable component supports efficient filtering and energy storage.

  • Applications:
    • LED driver circuits
    • Battery-powered devices
    • Consumer electronics
  • Features and Benefits:
    • Compact form factor: Ideal for space-constrained setups.
    • Enhanced magnetic shielding: Prevents signal interference.
    • Long lifespan: Ensures prolonged operational use.
  • Additional Details: Designed with user-friendliness in mind, the ELL-4GG1R8N combines compact size with powerful functionality, making it an excellent choice for both small-scale and large-scale applications.
