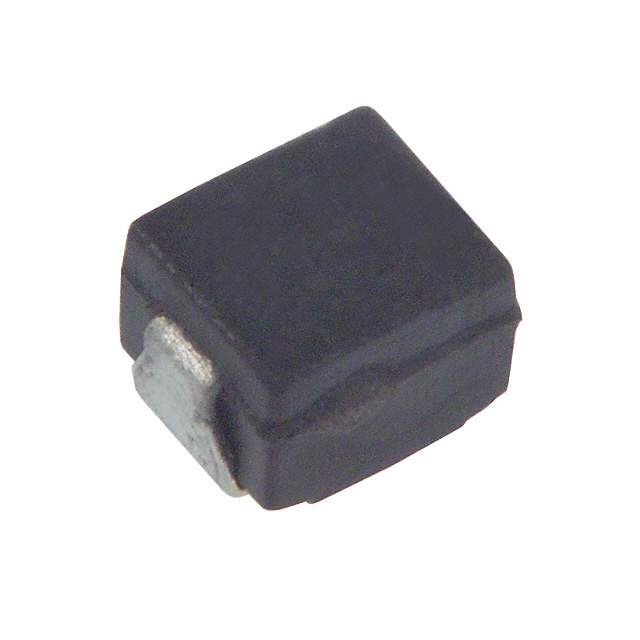

ELJ-SC470KF Real Image
Same model may have multiple batches, images only for reference.

ELJ-SC470KF

Part No ELJ-SC470KF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 47UH 12MA 6.6 OHM SMD / 47 µH Shielded Inductor 12 mA 6.6Ohm Max 1008 (2520 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Obsolete
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 12 mA
Shielding Shielded
DC Resistance (DCR) 6.6Ohm Max
Q @ Freq 40 @ 2.52MHz
Frequency - Self Resonant 14MHz
Inductance Frequency - Test 2.52 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Base Product Number ELJ-SC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number PCD1081TR-NDR,PCD1081DKR,PCD1081TR,PCD1081,ELJSC470KF,PCD1081CT-NDR,Q3701586,PCD1081CT
Standard Package 2,000
Win Source Part Number 1327380-ELJ-SC470KF
Ultra Librarian 3D Model Ultra Librarian ELJ-SC470KF CAD Model

Description

The Panasonic Electronic Components 1140958 is a fixed inductor that has a shielding feature.

  • Inductance: 47μH
  • Tolerance: ±10%
  • Mounting: Surface Mount Device (SMD)
  • Standard Package: 2000
  • DC Resistance: 6.6Ohm Max
  • Q @ Freq: 40 @ 2.52MHz
