Same model may have multiple batches, images only for reference.

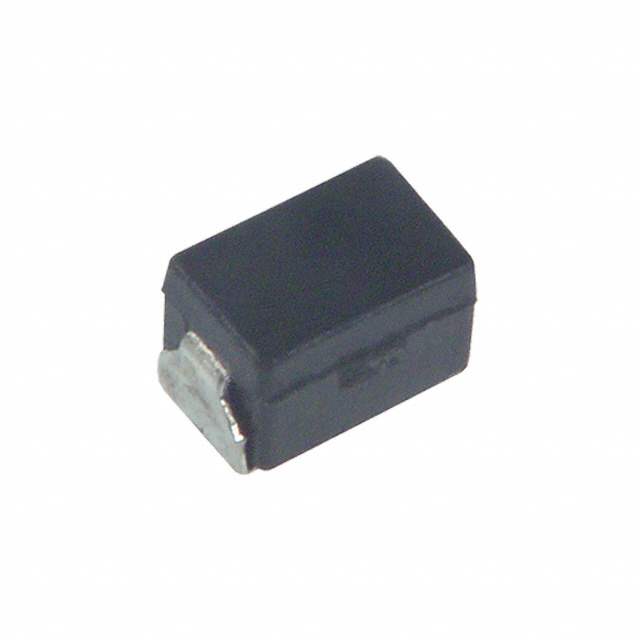

ELJ-PC6R8KF Real Image
Same model may have multiple batches, images only for reference.

ELJ-PC6R8KF

Part No ELJ-PC6R8KF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 6.8UH 170MA 1.3 OHM
Datasheet
ELJ-PC6R8KF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 6.8μH
Tolerance ±10%
Current Rating 170mA
DC Resistance (DCR) 1.3 Ohm Max
Q @ Freq 8.5 @ 7.96MHz
Frequency - Self Resonant 44MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 7.96MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 117772-ELJ-PC6R8KF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ELJ-PC6R8KF CAD Model

Description

Product Overview

The ELJ-PC6R8KF is designed to optimize the performance of power management systems. This inductor offers a blend of low DC resistance and high current handling capacity, making it ideal for use in demanding environments.

Features and Benefits

  • High Current Rating: Suitable for applications requiring substantial power.
  • Low Loss Design: Enhances efficiency by minimizing energy waste.
  • Exceptional Stability: Maintains performance consistency under various load conditions.

Applications

  • Power Electronics
  • DC-DC Converters
  • Electro-Mechanical Systems
