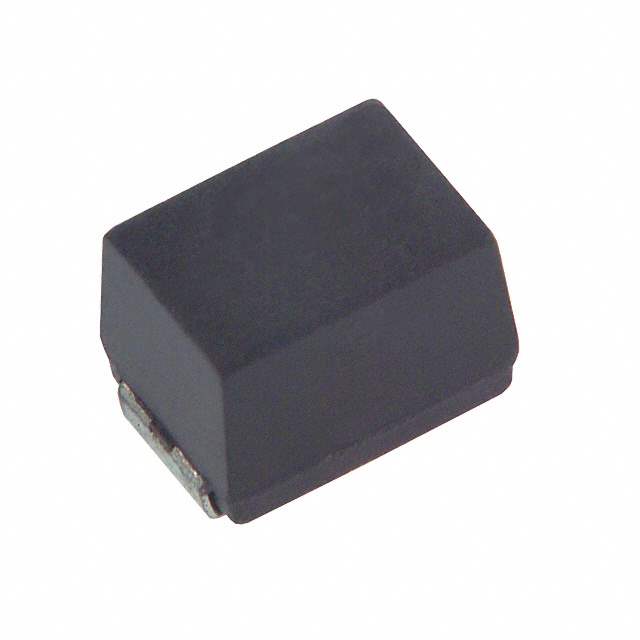

ELJ-PB470KF Real Image
Same model may have multiple batches, images only for reference.

ELJ-PB470KF

Part No ELJ-PB470KF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 47UH 210MA 1.9 OHM SMD
Datasheet
ELJ-PB470KF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 47μH
Tolerance ±10%
Current Rating 210mA
DC Resistance (DCR) 1.9 Ohm Max
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 8.5MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1812
Height - Seated (Max) 0.134" (3.40mm)
Win Source Part Number 114736-ELJ-PB470KF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELJ-PB470KF CAD Model

Description

ELJ-PB470KF - General-Purpose Chip Resistor

Engineered for versatility, the ELJ-PB470KF chip resistor offers reliable performance across a variety of electronic projects. It is a go-to option for engineers seeking dependable resistive components.

  • Features and Benefits:
    • Wide resistance range
    • Rugged construction
    • Cost-effective solution
    • High frequency performance
  • Applications:
    • Electronic toys
    • Home appliances
    • Light industrial equipment
    • Small-scale robotics
  • Additional Details:
    • Metal glaze technology
    • Available in various packaging options
    • Lead-free and environmentally friendly
