Same model may have multiple batches, images only for reference.

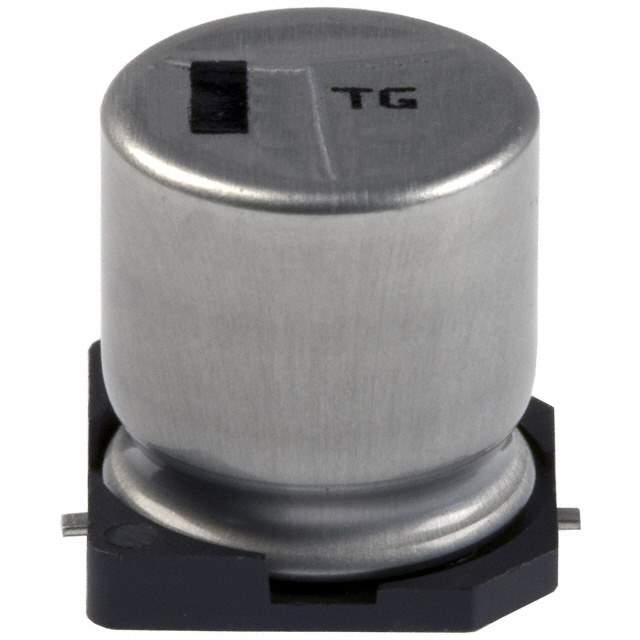

EEV-TG1H331Q Real Image
Same model may have multiple batches, images only for reference.

EEV-TG1H331Q

Part No EEV-TG1H331Q
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TG
Package Tape & Reel
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 230mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 390 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.531" (13.50mm)
Surface Mount Land Size 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEV-TG
Other Names EEVTG1H331Q,PCE3651TR,PCE3651DKR,PCE3651CT
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307301-EEV-TG1H331Q
Ultra Librarian 3D Model Ultra Librarian EEV-TG1H331Q CAD Model

Description

This aluminum electrolytic capacitor from Panasonic Electronic Components is part of the TG series and is ideal for automotive applications.

  • Capacitance: 330 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • ESR: 230mOhm @ 100kHz
  • Polarized: Yes
  • Surface Mount Land Size: 0.531" L x 0.531" W (13.50mm x 13.50mm)
  • Package/Case: Radial, can - SMD
  • Temperature Range: -40°C ~ 125°C
  • Lifetime: 2000 Hrs @ 125°C
  • Packaging: Tape & reel
  • Standard Package: 200
  • Ripple Current @ Low Frequency: 390 mA @ 120 Hz
  • Ripple Current @ High Frequency: 600 mA @ 100 kHz
  • AEC-Q200 Rated: Yes
