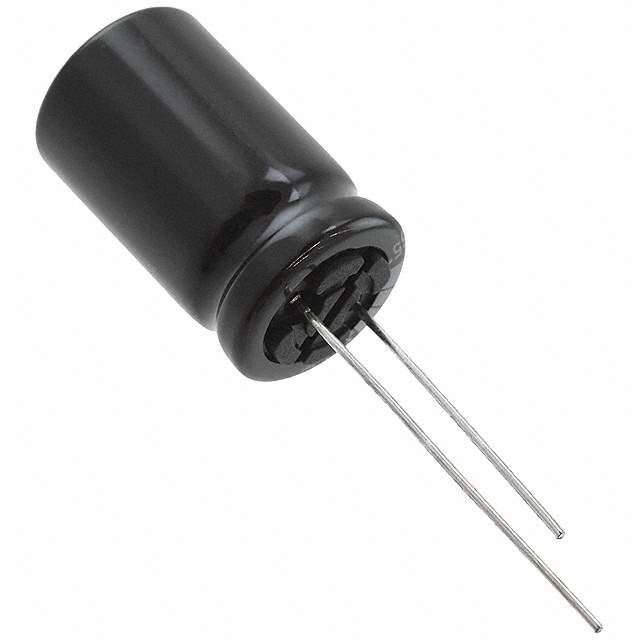

Same model may have multiple batches, images only for reference.

EEU-TP1V471B

Name: EEU-TP1V471B
Brand: Panasonic
SKU: 1351149
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEU-TP1V471B
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 35V RADIAL / 470 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	TP-A
Package	Cut Tape (CT) Tape & Box (TB)
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	4000 Hrs @ 125°C
Temperature Range - Operating	-40°C ~ 135°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	1.395 A @ 120 Hz
Ripple Current @ High Frequency	1.49 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	EEU-TP
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1351149-EEU-TP1V471B
Ultra Librarian 3D Model	Ultra Librarian EEU-TP1V471B CAD Model

Description

The 1166428 is an aluminum electrolytic capacitor that has a capacitance of 470μF from Panasonic Electronic Components.

Capacitance: 470μF
Voltage Rating: 35V
Tolerance: ±20%
Polarization: Polarized
Mounting Type: Through-hole
Standard Package: 500
Ripple Current: 1.395 A @ 120 Hz and 1.49 A @ 100 kHz
AEC-Q200: Yes
Temperature Range: -40°C to 135°C
