Same model may have multiple batches, images only for reference.

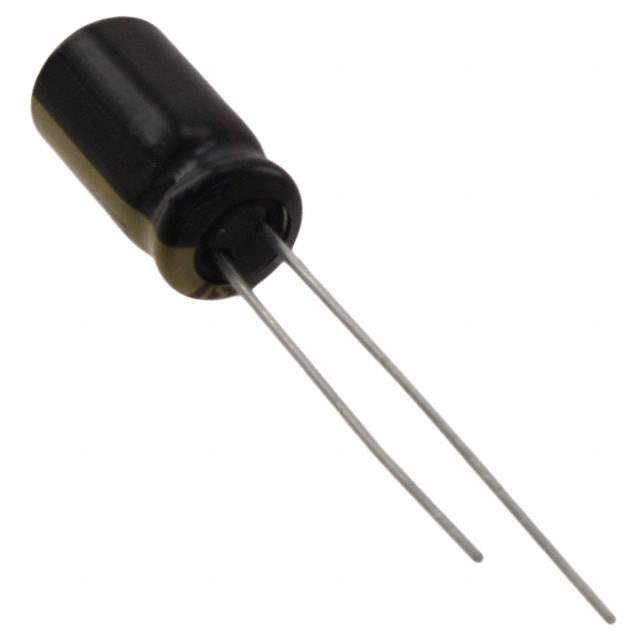

EEU-FM1A221

Name: EEU-FM1A221
Brand: Panasonic
SKU: 1341442
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEU-FM1A221
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 10V RADIAL / 220 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FM-A
Package	Bulk
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	10 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	318.5 mA @ 120 Hz
Ripple Current @ High Frequency	455 mA @ 100 kHz
Impedance	130 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.500" (12.70mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	EEU-FM
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1341442-EEU-FM1A221
Ultra Librarian 3D Model	Ultra Librarian EEU-FM1A221 CAD Model

Description

The EEU-FM1A221 is an aluminum electrolytic capacitor from Panasonic Electronic Components.

Series: FM-A
Packaging: Bulk
Capacitance: 220 µF
Tolerance: ±20%
Voltage Rating: 10V
Lead Spacing: 0.098" (2.50mm)
Impedance: 130 mOhms
Ripple Current (Low Frequency): 318.5 mA @ 120 Hz
Ripple Current (High Frequency): 455 mA @ 100 kHz
Operating Temperature: -40°C to 105°C
REACH: Unaffected
