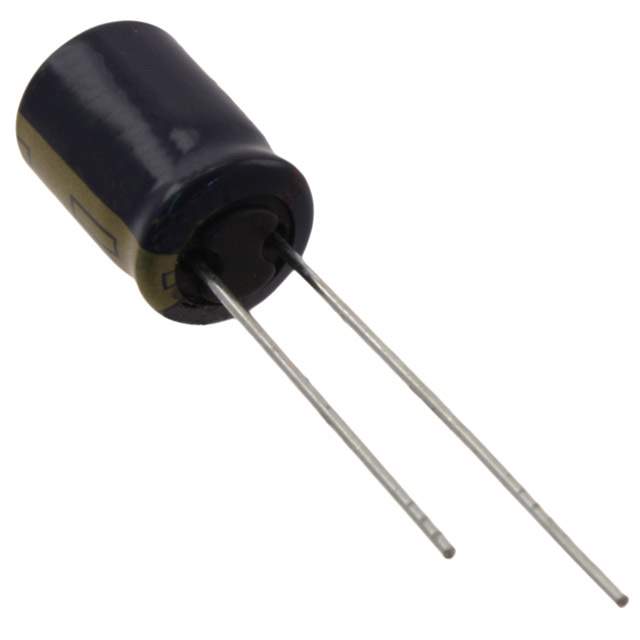

EEU-FC1V101 Real Image
Same model may have multiple batches, images only for reference.

EEU-FC1V101

Part No EEU-FC1V101
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 35V RADIAL / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 360.8 mA @ 120 Hz
Ripple Current @ High Frequency 555 mA @ 100 kHz
Impedance 117 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Mounting Through Hole
Case / Package Radial, Can
Base Product Number EEU-FC
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P10294,Q3265728A,EEUFC1V101
Standard Package 200
Win Source Part Number 1331206-EEU-FC1V101
Ultra Librarian 3D Model Ultra Librarian EEU-FC1V101 CAD Model

Description

The Panasonic Electronic Components EEU-FC1V101 is an aluminum electrolytic capacitor that is commonly used in automotive applications.

  • Capacitance: 100 µF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Impedance: 117 mOhms
  • ESR: Not specified
  • Lifetime @ Temperature: 2000 Hrs @ 105°C
  • Polarization: Polar
  • Packaging: Radial, can packaging
  • Standard Package: 200 capacitors
  • Rating: AEC-Q200 rated
