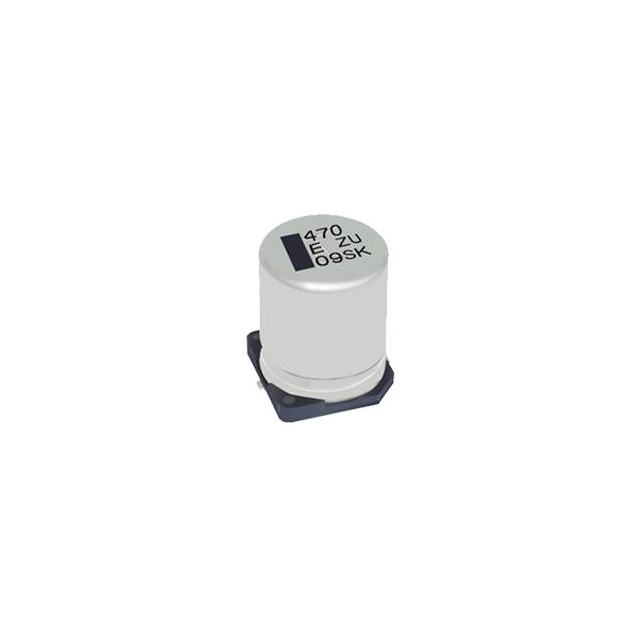

Same model may have multiple batches, images only for reference.

EEH-ZU1H151P

Name: EEH-ZU1H151P
Brand: Panasonic
SKU: 1337953
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEH-ZU1H151P
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY HYB 150UF 50V SMD / 150 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 12mOhm 4000 Hrs @ 135°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	ZU
Package	Tape & Reel
Type	Hybrid
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	12mOhm
Lifetime @ Temp.	4000 Hrs @ 135°C
Temperature Range - Operating	-55°C ~ 135°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	690 mA @ 100 Hz
Ripple Current @ High Frequency	4.6 A @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.504" (12.80mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEH-ZU
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1337953-EEH-ZU1H151P
Ultra Librarian 3D Model	Ultra Librarian EEH-ZU1H151P CAD Model

Description

The EEH-ZU1H151P capacitor is a hybrid aluminum-polymer capacitor that is part of the ZU series from Panasonic Electronic Components.

Application: Automotive
Capacitance: 150 µF
Tolerance: ±20%
Voltage Rating: 50 V
ESR: 12mOhm
Lifetime: 4000 Hrs @ 135°C
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type: Surface Mount Technology
Package/Case: Radial, can - SMD
Temperature Range: -55°C ~ 135°C
MSL Level: 1 (Unlimited)
REACH: REACH Unaffected
HTSUS: 8532.22.0020
Base Product Number: EEH-ZU
Ripple Current @ Low Frequency: 690 mA @ 100 Hz
Ripple Current @ High Frequency: 4.6 A @ 100 kHz
