Same model may have multiple batches, images only for reference.

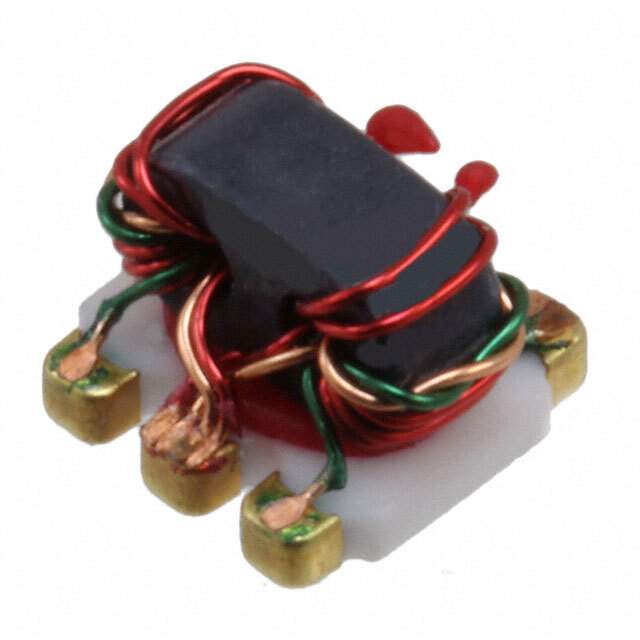

MACP-009596-CA0160 Real Image
Same model may have multiple batches, images only for reference.

MACP-009596-CA0160

Part No MACP-009596-CA0160
Manufacturer M/A-Com Technology Solutions
Catalog RF Directional Coupler
Description COUPLER 10DB
Datasheet
MACP-009596-CA0160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Cut Reel
Coupler Type Standard
Frequency 5MHz to 1GHz
Coupling Factor 10dB
Return Loss -16dB
Case / Package SM-22
Win Source Part Number 073233-MACP-009596-CA0160
Ultra Librarian 3D Model Ultra Librarian MACP-009596-CA0160 CAD Model

Description

The M/A-Com Technology Solutions MACP-009596-CA0160 is a standard coupler that is used in various RF/IF and RFID applications.

  • Frequency Range: 5MHz to 1GHz
  • Coupling Factor: 10dB
  • Ideal For: Applications that require high isolation and low insertion loss
  • Packaging: Cut reel
