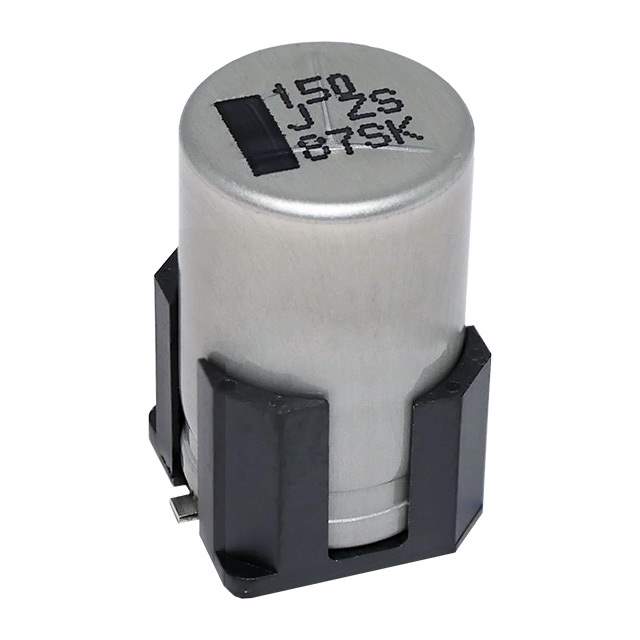

Same model may have multiple batches, images only for reference.

EEH-ZS1J151V

Name: EEH-ZS1J151V
Brand: Panasonic
SKU: 1308429
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EEH-ZS1J151V
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	ZS, Anti-Vibration
Package	Tape & Reel
Type	Hybrid
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	15mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	525 mA @ 100 Hz
Ripple Current @ High Frequency	3.5 A @ 100 kHz
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.661" (16.80mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEH-ZS
Other Names	P124109CT,EEHZS1J151V,P124109TR,P124109DKR
Standard Package	250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308429-EEH-ZS1J151V
Ultra Librarian 3D Model	Ultra Librarian EEH-ZS1J151V CAD Model

Description

The EEH-ZS1J151V is a hybrid type aluminum-polymer capacitor manufactured by Panasonic Electronic Components.

Series: ZS, Anti-Vibration
Packaging: Tape and Reel
Capacitance: 150µF
Tolerance: ±20%
Voltage Rating: 63V
Application: Automotive
Height When Seated: 0.661 inches
Mounting Type: Surface-Mount
ESR (Equivalent Series Resistance): 15mOhm
Lifetime @ Temperature: 4000 Hrs @ 125°C
Surface Mount Land Size: 0.406 inches L x 0.406 inches W
Package/Case: Radial, Can - SMD
Temperature Range: -55°C ~ 125°C
Diameter: 0.394 inches
ECCN: EAR99 compliant
REACH Status: REACH Unaffected
HTSUS: 8532.22.0020
Ripple Current: 525 mA @ 100 Hz, 3.5 A @ 100 kHz
