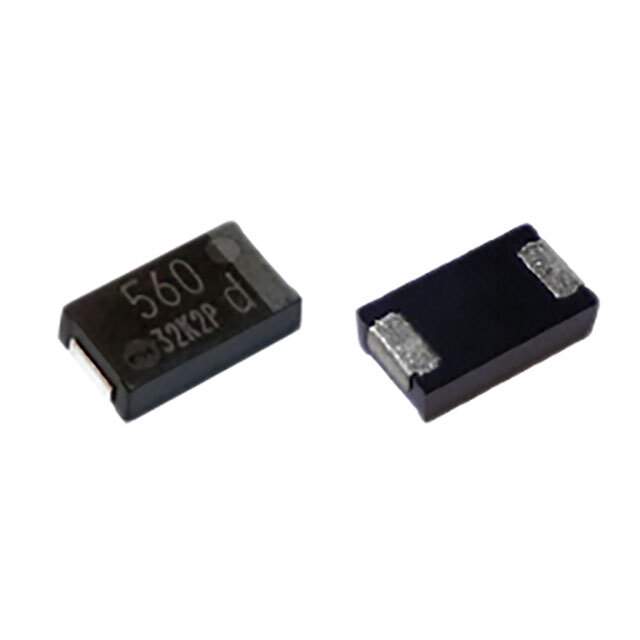

Same model may have multiple batches, images only for reference.

EEF-HX0E471R6

Name: EEF-HX0E471R6
Brand: Panasonic
SKU: 1000200
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEF-HX0E471R6
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 470UF 20% 2.5V SMD / 470 µF 2.5 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 6mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	SP-Cap HX
Package	Tape & Reel (TR)
Type	Polymer
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	2.5 V
ESR (Equivalent Series Resistance)	6mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Applications	General Purpose
Ripple Current @ High Frequency	7.5 A @ 100 kHz
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.079" (2.00mm)
Surface Mount Land Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting	SMD (SMT)
Package / Case	2917 (7343 Metric)
Base Product Number	EEF-HX
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	EEFHX0E471R6
Standard Package	3,500
Win Source Part Number	1000200-EEF-HX0E471R6
Ultra Librarian 3D Model	Ultra Librarian EEF-HX0E471R6 CAD Model

Description

The Panasonic Electronic Components EEF-HX0E471R6 is a SP-Cap HX series aluminum-polymer capacitor.

Capacitance: 470 µF
Voltage Rating: 2.5 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 6mOhm
Lifetime: 1000 Hrs @ 125°C
Mounting: SMD (SMT) mounting
Height: 0.079" (2.00mm) when seated
Package Size: 2917 (7343 Metric)
Operating Temperature Range: -55°C ~ 125°C
RoHS Compliant: Yes
ECCN: EAR99
