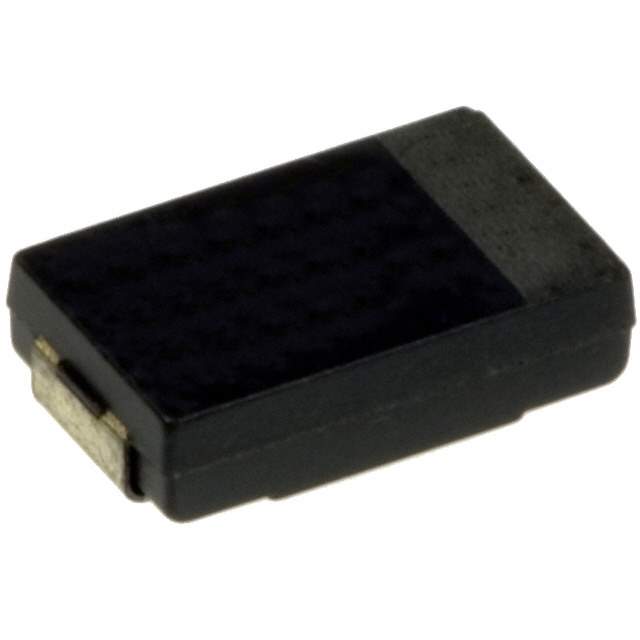

EEF-CX1C330R Real Image
Same model may have multiple batches, images only for reference.

EEF-CX1C330R

Part No EEF-CX1C330R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 33UF 20% 16V SMD  /  33 µF 16 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 40mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap CX
Package Tape & Reel
Product Status Not For New Designs
Type Polymer
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3.2 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-CX
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEFCX1C330R,P16814-2,P16814-1,P16814-6
Standard Package 3,500
Win Source Part Number 975784-EEF-CX1C330R
Ultra Librarian 3D Model Ultra Librarian EEF-CX1C330R CAD Model

Description

The EEF-CX1C330R is a SP-Cap CX series polymer capacitor from Panasonic Electronic Components with a capacitance of 33μF and voltage rating of 16V.

  • Series: SP-Cap CX
  • Capacitance: 33μF
  • Voltage Rating: 16V
  • Lifetime: 2000 hours @ 105°C
  • Packaging: Tape and Reel
  • Mounting Type: Surface Mount
  • Height: 0.075” (1.90mm)
  • ESR: 40mOhm
  • Application: General Purpose
  • Standard Package: 3,500
  • Status: Not for new designs
  • Ripple Current @ High Frequency: 3.2A @ 100kHz
