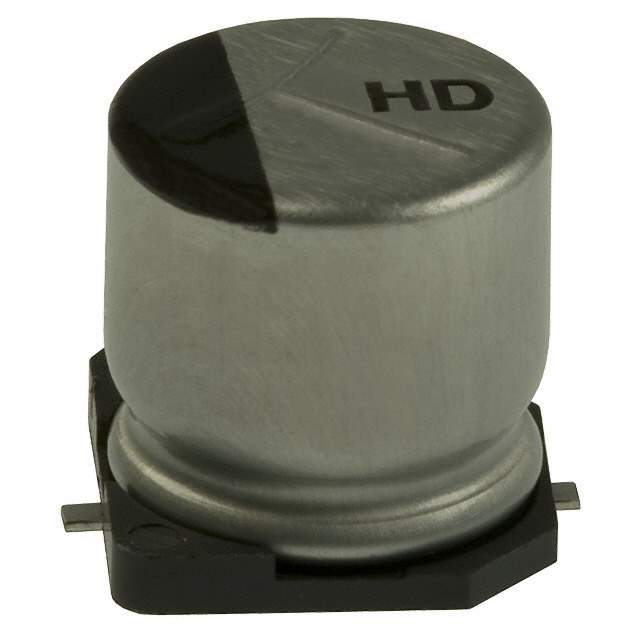

Same model may have multiple batches, images only for reference.

EEEHD1E220AP

Name: EEEHD1E220AP
Brand: Panasonic
SKU: 1035871
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEEHD1E220AP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	Cap Aluminum 22uF 25V 20% (6.3 X 5.8mm) SMD 55mA 5000 hr 105°C T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Capacitance	22 µF
Mounting	SMD (SMT)
Case / Package	Radial
Diameter	6.3 mm
Dielectric Material	Aluminium
Dissipation Factor	0.16 %
ESR (Equivalent Series Resistance)	4 Ω
Height	5.8 mm
Height - Seated (Max)	5.7912 mm
Impedance	4 Ω
Lead Pitch	1.8 mm
Leakage Current	5.5 µA
Length	5.5 mm
Life (Hours)	5000 hours
Maximum Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	PCB, Surface Mount
Number of Pins	2
Packaging	Cut Tape
Polarity	Polar
Radiation Hardening	No
REACH SVHC	No SVHC
Ripple Current	55 mA
Ripple Current (AC)	55 mA
RoHS	Compliant
Schedule B	8532220020, 8532220020
Termination	SMD/SMT
Tolerance	20 %
Voltage	25 V
Voltage Rating	25 V
Voltage Rating (DC)	25 V
Win Source Part Number	1035871-EEEHD1E220AP
Categories	Aluminum Capacitors
Manufacturer	Panasonic
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian EEEHD1E220AP CAD Model

Description

The Panasonic EEEHD1E220AP is a 22uF aluminum capacitor manufactured by Panasonic.

Capacitance: 22µF
Voltage Rating: 25V
Win Source Part Number: 1035871-EEEHD1E220AP
Packaging: Cut Tape
Termination Style: Surface Mount
Height: 5.8mm
Popularity: Low
Maximum Operating Temperature: 105°C
Minimum Operating Temperature: -40°C
RoHS: Compliant
Ripple Current: 55mA
