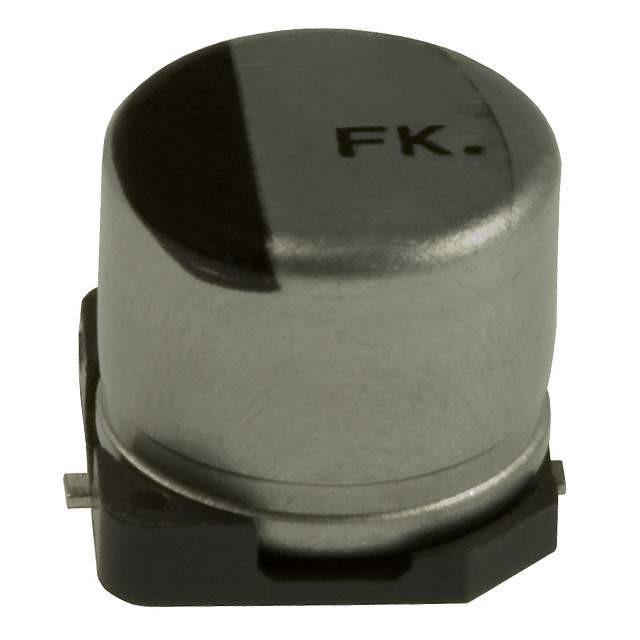

EEEFK1V470AP Real Image
Same model may have multiple batches, images only for reference.

EEEFK1V470AP

Part No EEEFK1V470AP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description Cap Aluminum 47uF 35V ±20% Cylindrical 50mA 2000 hr 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 47 µF
Mounting SMD (SMT)
Case / Package Radial
Contact Plating Tin
Diameter 6.3 mm
Dielectric Material Aluminium
ESR (Equivalent Series Resistance) 360 mΩ
Height 5.8 mm
Height - Seated (Max) 6.096 mm
Impedance 360 mΩ
Lead Free Yes
Lead Length 2.6 mm
Lead Pitch 1.8 mm
Leakage Current 16.4 µA
Length 5.7 mm
Life (Hours) 2000 hours
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount PCB, Surface Mount
Number of Pins 2
Packaging Cut Tape
Polarity Polar
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 240 mA
Ripple Current (AC) 240 mA
RoHS Compliant
Schedule B 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 35 V
Voltage Rating 35 V
Voltage Rating (AC) 35 V
Voltage Rating (DC) 35 V
Width 6.6 mm
Win Source Part Number 962048-EEEFK1V470AP
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EEEFK1V470AP CAD Model

Description

This Panasonic surface mount aluminum capacitor has a capacitance of 47 μF and a voltage rating of 35 V.

  • Capacitance: 47 μF
  • Voltage Rating: 35 V
  • Case/Package: Radial
  • Package: Cut Tape
  • Polar: Yes
  • Tolerance: 20%
  • Impedance: 360 mΩ
  • Equivalent Series Resistance (ESR): 360 mΩ
  • Ripple Current: 240 mA
  • Leakage Current: 16.4 μA
  • Height: 5.8 mm
  • Diameter: 6.3 mm
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -55 °C
