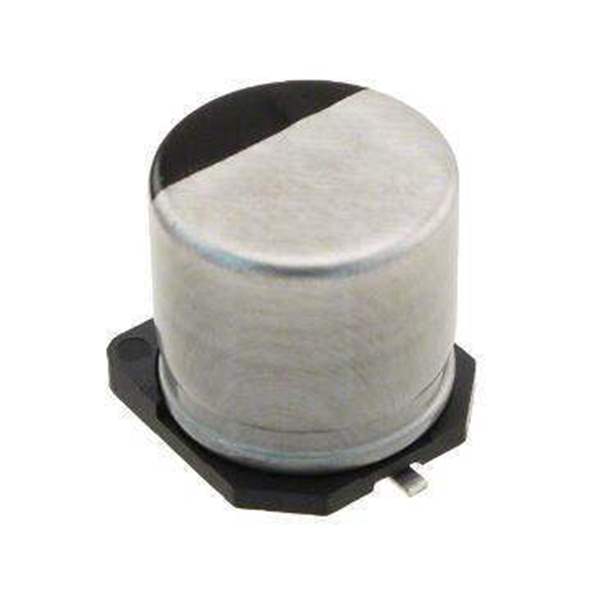

EEE-TP1J751M

Part No EEE-TP1J751M
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 750UF 20% 63V SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Category Capacitors Aluminum Electrolytic Capacitors
Part Status Active
Tolerance ±20%
Capacitance 750 µF
ESR (Equivalent Series Resistance) 95mOhm @ 100kHz
Lifetime @ Temp. 3000 Hrs @ 125°C
Ripple Current @ Low Frequency 1.5 A @ 120 Hz
Ripple Current @ High Frequency 2 A @ 100 kHz
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Surface Mount Land Size 0.748" L x 0.748" W (19.00mm x 19.00mm)
Package / Case Radial, Can - SMD
Win Source Part Number WS1307544-EEE-TP1J751M
Ultra Librarian 3D Model Ultra Librarian EEE-TP1J751M CAD Model

Description

750 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 95mOhm @ 100kHz 3000 Hrs @ 125°C
