Same model may have multiple batches, images only for reference.

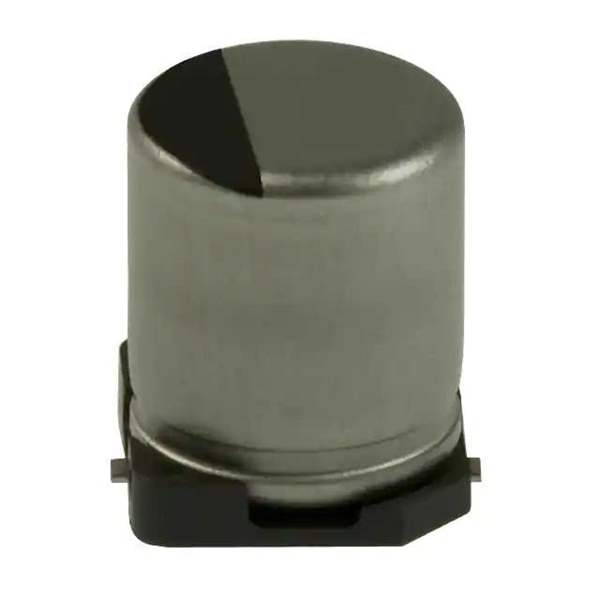

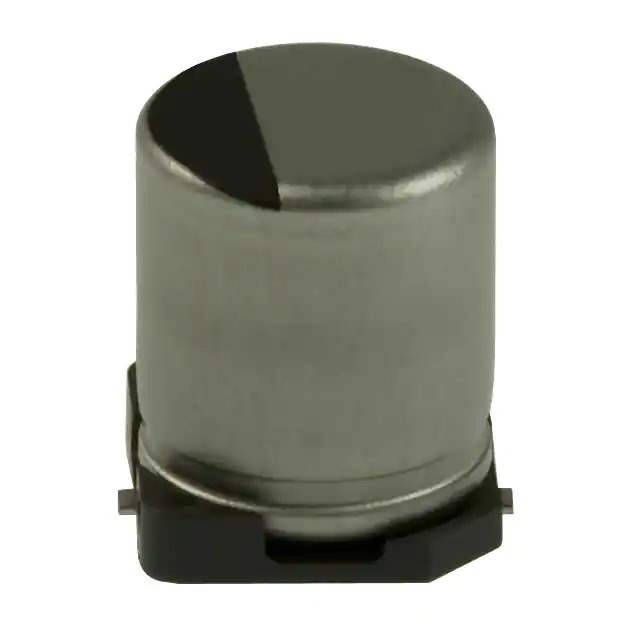

EEE-HA1H470XP

Name: EEE-HA1H470XP
Brand: Panasonic
SKU: 845823
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EEE-HA1H470XP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 50V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic
Series	HA
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	63 mA @ 120 Hz
Ripple Current @ High Frequency	107.1 mA @ 10 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEE-HA
Standard Package	900 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	845823-EEE-HA1H470XP
Ultra Librarian 3D Model	Ultra Librarian EEE-HA1H470XP CAD Model

Alternative Products

Description

The Panasonic 845823-EEE-HA1H470XP is an aluminum electrolytic capacitor designed for automotive applications.

Manufacturer: Panasonic
Series: HA
Type: Aluminum Electrolytic Capacitor
Application: Automotive
Capacitance: 47 µF
Tolerance: ±20%
Voltage Rating: 50 V
Rating: AEC-Q200
Mounting Type: Surface Mountable
Package: Radial, Can - SMD
Size: 0.248" Diameter
Height: 0.303"
Lifetime: 1000 hours @ 105°C
Operating Temperature: -40°C to 105°C
