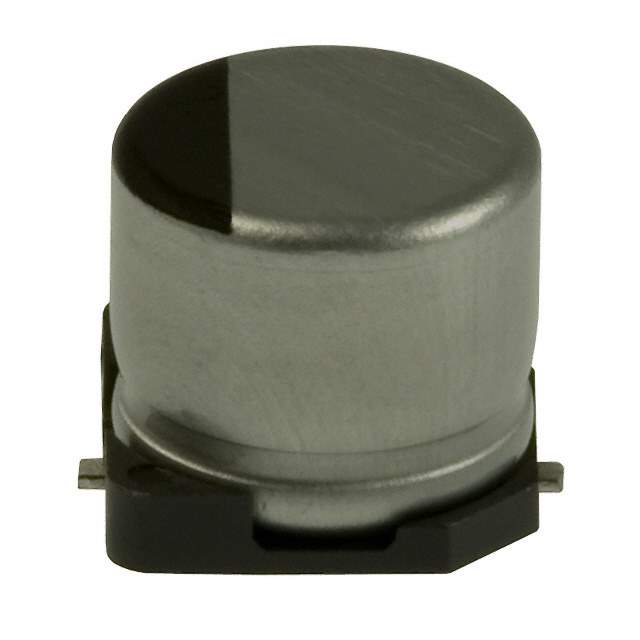

Same model may have multiple batches, images only for reference.

EEE-HA1C220WR

Name: EEE-HA1C220WR
Brand: Panasonic
SKU: 1328500
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-HA1C220WR
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 16V SMD / 22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Product Status	Not For New Designs
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	28 mA @ 120 Hz
Ripple Current @ High Frequency	47.6 mA @ 10 kHz
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEE-HA
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	EEEHA1C220WR,PCE4182CT,PCE4182DKR,PCE4182TR
Standard Package	2,000
Win Source Part Number	1328500-EEE-HA1C220WR
Ultra Librarian 3D Model	Ultra Librarian EEE-HA1C220WR CAD Model

Description

The EEE-HA1C220WR is an aluminum electrolytic capacitor manufactured by Panasonic Electronic Components.

Package: reel
Capacitance: 22μF
Tolerance: ±20%
Rated Voltage: 16V
Height: 0.213" (5.40mm)
Application: automotive applications
Operating Temperature: -40°C to 105°C
RoHS Compliant: Yes
Ripple Current: 28mA @ low frequency and 47.6mA @ high frequency
