Same model may have multiple batches, images only for reference.

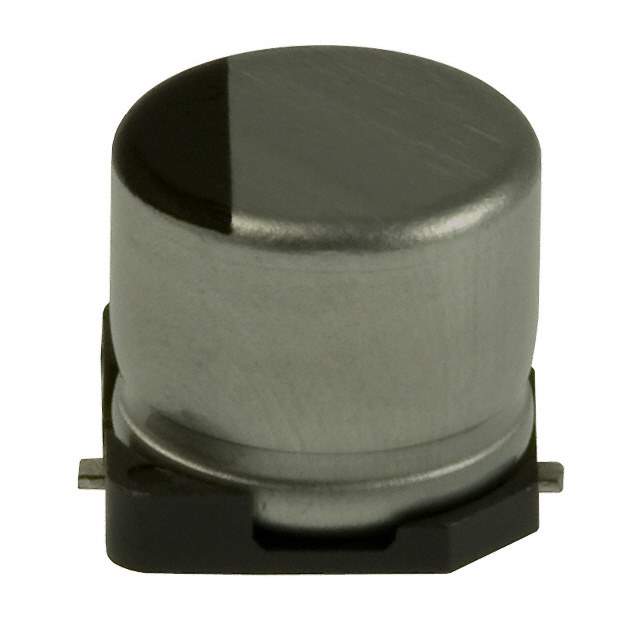

EEE-HA1A220WR Real Image
Same model may have multiple batches, images only for reference.

EEE-HA1A220WR

Part No EEE-HA1A220WR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 10V SMD / 22 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 28 mA @ 120 Hz
Ripple Current @ High Frequency 47.6 mA @ 10 kHz
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-HA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE4171TR,EEEHA1A220WR,PCE4171CT,PCE4171DKR
Standard Package 2,000
Win Source Part Number 1331374-EEE-HA1A220WR
Ultra Librarian 3D Model Ultra Librarian EEE-HA1A220WR CAD Model

Description

The EEE-HA1A220WR is a radial, can - SMD aluminum electrolytic capacitor designed by Panasonic Electronic Components.

  • Manufacturer: Panasonic Electronic Components
  • Capacitance: 22μF
  • Voltage Rating: 10V
  • AEC-Q200 Rated: Yes
  • Operating Temperature Range: -40°C to 105°C
  • Package: Reel - TR
  • Standard Package: 2,000
  • Application: Automotive
