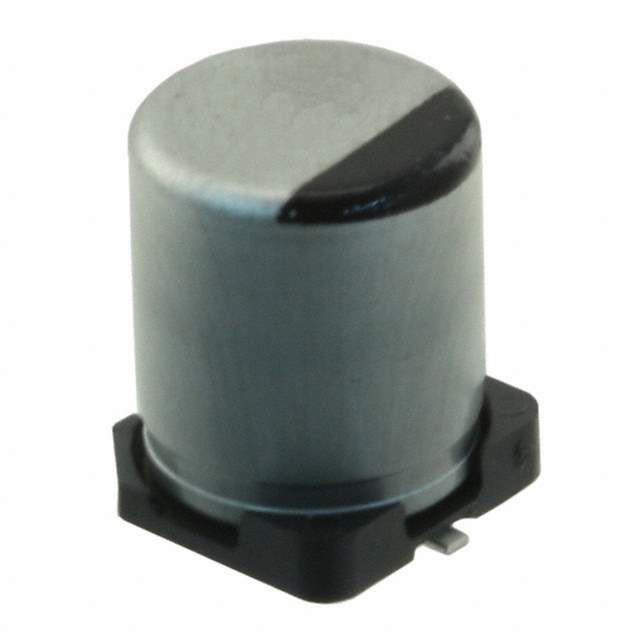

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 160mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 390 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-FTC
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P15095CT,P15095DKR,P15095TR,EEEFTC331XAP
Standard Package 900
Win Source Part Number 1331156-EEE-FTC331XAP
Ultra Librarian 3D Model Ultra Librarian EEE-FTC331XAP CAD Model

Description

The Panasonic Electronic Components EEE-FTC331XAP is an aluminum electrolytic capacitor that is manufactured by Panasonic Electronic Components.

  • Capacitance: 330 µF
  • Voltage Rating: 16 V
  • AEC-Q200 Rated: Yes
  • Tolerance: ±20%
  • ESR: 160mOhm @ 100kHz
  • ROHS3 Compliant: Yes
  • Ripple Current: 390 mA @ 120 Hz, 600 mA @ 100 kHz
