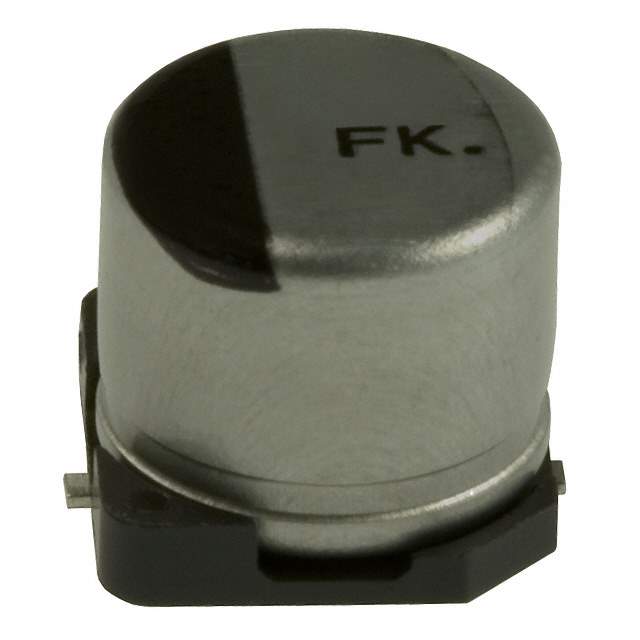

Same model may have multiple batches, images only for reference.

EEE-FK1K100XP

Name: EEE-FK1K100XP
Brand: Panasonic
SKU: 1307329
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-FK1K100XP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FK
Package	Tape & Reel
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	80 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	45 mA @ 120 Hz
Ripple Current @ High Frequency	60 mA @ 100 kHz
Impedance	2.4 Ohms
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FK
Other Names	EEEFK1K100XP,PCE3827TR,PCE3827DKR,PCE3827CT
Standard Package	900
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307329-EEE-FK1K100XP
Ultra Librarian 3D Model	Ultra Librarian EEE-FK1K100XP CAD Model

Description

The Panasonic Electronic Components aluminum electrolytic capacitor is a high-quality component used in automotive applications.

Capacitance: 10 µF
Voltage Rating: 80 V
Tolerance: ±20%
Impedance: 2.4 Ohms
Series: EEE-FK
Mounting: SMD
Height: 0.315" (8.00mm)
Package: Tape and Reel
Standard Package: 900
Lifetime: 2000 Hrs @ 105°C
Polarized: Yes
ESR: Not Specified
AEC-Q200 Rated: Yes
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Package/Case: Radial, Can - SMD
Temperature Range: -55°C ~ 105°C
