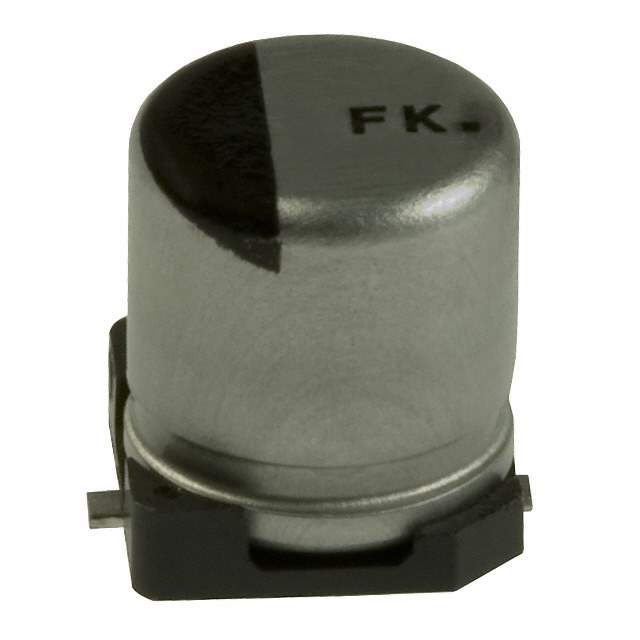

Same model may have multiple batches, images only for reference.

EEE-FK1C220R

Name: EEE-FK1C220R
Brand: Panasonic
SKU: 1056864
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEE-FK1C220R
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 16V SMD / 22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FK
Package	Tape & Reel
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120 mA @ 120 Hz
Ripple Current @ High Frequency	160 mA @ 100 kHz
Impedance	700 mOhms
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FK
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	EEEFK1C220R,PCE3785CT,PCE3785TR,Q5382498,2266-EEE-FK1C220R,PCE3785DKR
Standard Package	1,000
Win Source Part Number	1056864-EEE-FK1C220R
Ultra Librarian 3D Model	Ultra Librarian EEE-FK1C220R CAD Model

Description

The Panasonic Electronic Components EEE-FK1C220R is an aluminum electrolytic capacitor with a capacitance of 22 µF and a voltage rating of 16 V.

Manufacturer: Panasonic Electronic Components
Capacitance: 22 µF
Voltage Rating: 16 V
Tolerance: ±20%
Height-Seated Maximum: 0.240" (6.10mm)
Polarized: Yes
Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Ripple Current @ High Frequency: 160 mA @ 100 kHz
Ripple Current @ Low Frequency: 120 mA @ 120 Hz
