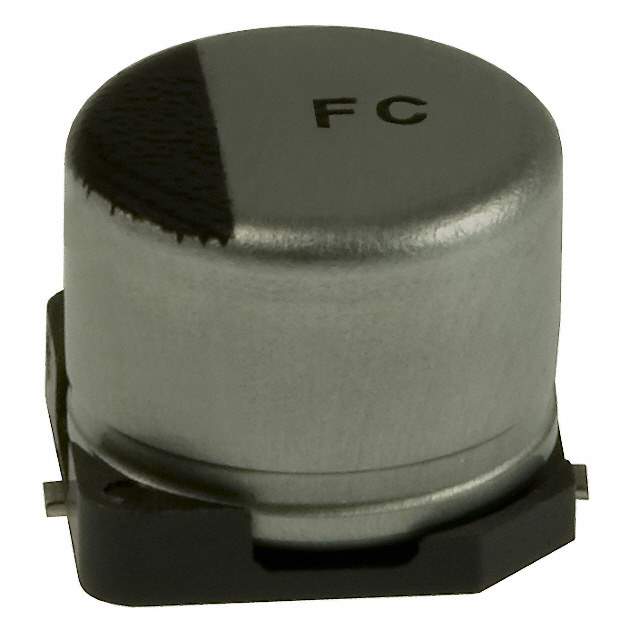

EEE-FC1H100P Real Image1 EEE-FC1H100P Real Image2
Same model may have multiple batches, images only for reference.
EEE-FC1H100P Real Image1 EEE-FC1H100P Real Image2
EEE-FC1H100P Real Image1 EEE-FC1H100P Real Image2
Same model may have multiple batches, images only for reference.

EEE-FC1H100P

Part No EEE-FC1H100P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V SMD / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic
Series FC
Package Tape & Reel
Product Status Not For New Designs
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 52.5 mA @ 120 Hz
Ripple Current @ High Frequency 70 mA @ 100 kHz
Impedance 2 Ohms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-FC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000 pcs
Win Source Part Number 1381987-EEE-FC1H100P
Ultra Librarian 3D Model Ultra Librarian EEE-FC1H100P CAD Model

Description

The 1381987-EEE-FC1H100P is an aluminum electrolytic capacitor from the FC series by Panasonic.

  • Application: Automotive
  • Capacitance: 10 μF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Package: 1,000 pcs (Standard)
  • Diameter: 0.248" (6.30mm)
  • Height (Seated): 0.213" (5.40mm)
  • Polarization: Polarized
  • Mounting Type: Surface Mount
  • Package Type: Radial, Can - SMD
  • Operating Temperature: -40°C to 105°C
  • AEC-Q200: Yes
  • REACH: Unaffected
  • Impedance: 2 Ohms
  • Ripple Current (Low Frequency): 52.5 mA
  • Ripple Current (High Frequency): 70 mA
