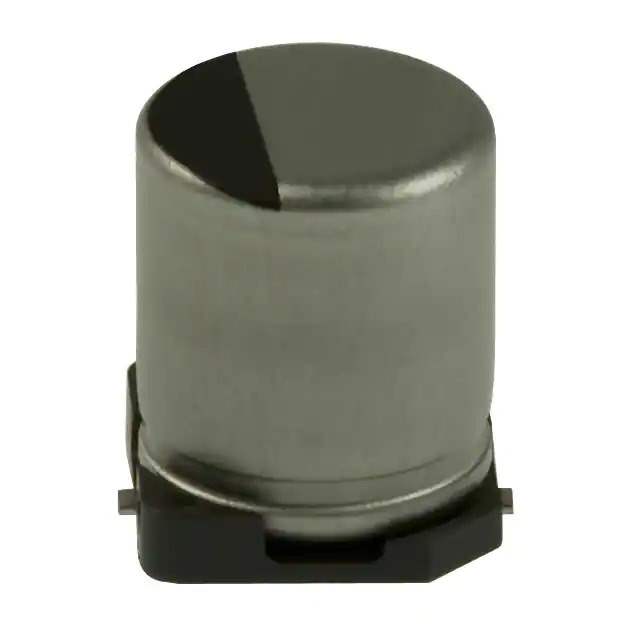

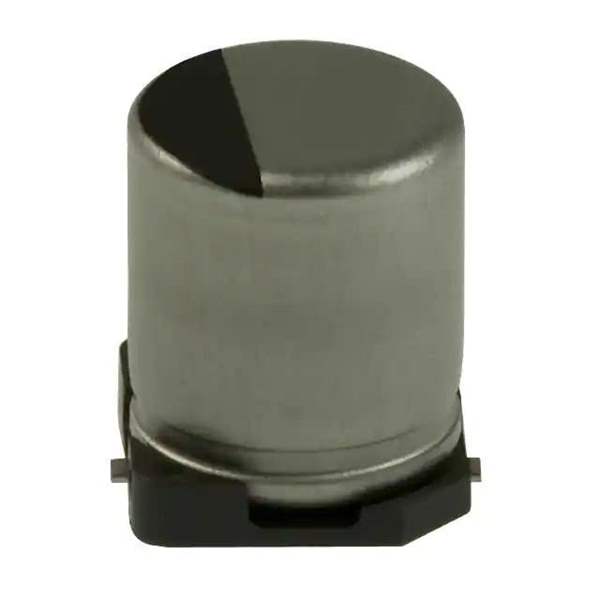

Same model may have multiple batches, images only for reference.

EEE-1HA470XP

Name: EEE-1HA470XP
Brand: Panasonic
SKU: 588210
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-1HA470XP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 50V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic
Series	S
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	105 mA @ 120 Hz
Ripple Current @ High Frequency	178.5 mA @ 10 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEE-1HA
Standard Package	900 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	588210-EEE-1HA470XP
Ultra Librarian 3D Model	Ultra Librarian EEE-1HA470XP CAD Model

Description

The Panasonic S series aluminum electrolytic capacitor is a reliable and high-performance component designed for automotive applications.

Capacitance: 47 µF
Voltage Rating: 50 V
Size: 0.248" diameter (6.30mm)
Seated Height: 0.315" (8.00mm)
Mounting Type: Surface mountable
Package: Tape & reel
Temperature Range: -40°C to 85°C
Lifetime: 2000 hours @ 85°C
Standard Package: 900 pcs
Manufacturer: Panasonic
