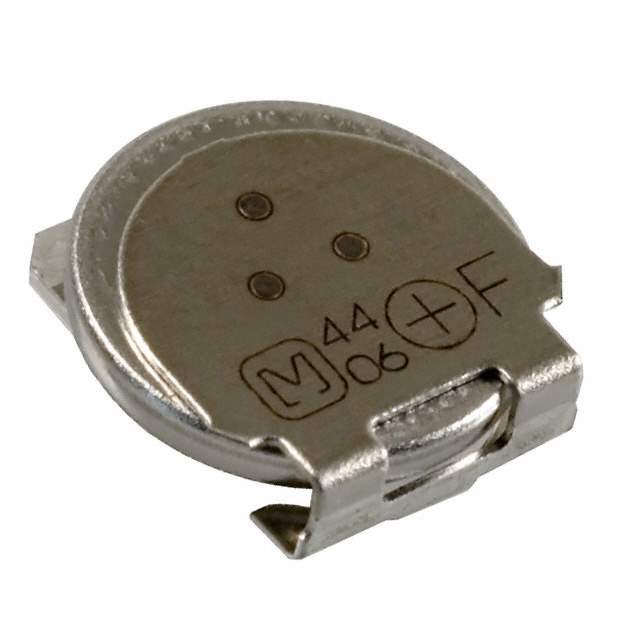

The EECEN0F204J1 is an Electric Double Layer Capacitor (EDLC), also known as a supercapacitor or ultracapacitor, manufactured by Panasonic. These devices store energy electrostatically using ion accumulation at the interface between an electrode and an electrolyte. This capacitor is designed for applications requiring high energy storage, long life, and rapid charge/discharge cycles.

Applications

• Energy harvesting systems
• Backup power for memory devices
• Pulse power assistance in battery-powered devices
• Energy storage in wireless sensors
• Solid state drives

Features

• 0.2F (200mF) Capacitance
• 3.3V Rated Voltage
• Through-hole mounting
• Operating Temperature Range: -25°C to +70°C
• Low Equivalent Series Resistance (ESR)

Benefits

• High energy storage capacity compared to conventional capacitors
• Long cycle life (hundreds of thousands of cycles)
• Rapid charge and discharge rates
• Environmentally friendly (RoHS compliant)
• Maintenance-free operation

Additional Details

The EECEN0F204J1 offers a high capacitance of 0.2 Farads at a rated voltage of 3.3V. The low ESR enables efficient charge and discharge cycles. It is suitable for applications where a large amount of energy needs to be stored and delivered quickly. Supercapacitors offer a significantly longer cycle life than batteries, making them ideal for applications where frequent charge/discharge cycles are required. This part is often used to provide backup power for memory devices, allowing data to be retained during power outages. The operating temperature range makes it suitable for a variety of environments. It is environmentally friendly, complying with RoHS regulations. Typical applications include energy harvesting systems, where energy is captured from the environment and stored for later use, and pulse power assistance in battery-powered devices, where the supercapacitor provides a burst of power when needed. The through-hole mounting configuration facilitates easy integration into existing circuits. This device provides a reliable and long-lasting energy storage solution.
