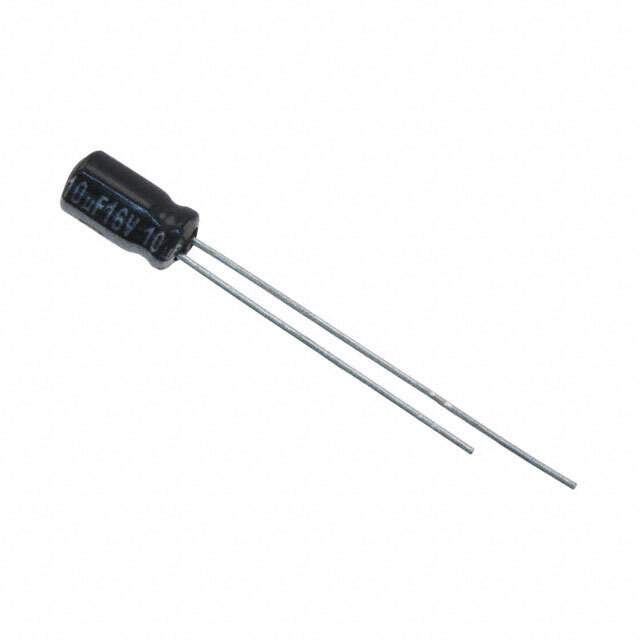

Same model may have multiple batches, images only for reference.

EEA-GA1H4R7

Name: EEA-GA1H4R7
Brand: Panasonic
SKU: 1331204
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEA-GA1H4R7
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 4.7UF 20% 50V RADIAL / 4.7 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Bulk
Capacitance	4.7 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	26 mA @ 120 Hz
Ripple Current @ High Frequency	40.3 mA @ 100 kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	EEA-GA1
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	EEAGA1H4R7,P14508
Standard Package	200
Win Source Part Number	1331204-EEA-GA1H4R7
Ultra Librarian 3D Model	Ultra Librarian EEA-GA1H4R7 CAD Model

Description

The Panasonic Electronic Components EEA-GA1H4R7 is a through hole aluminum electrolytic capacitor with a capacitance of 4.7 µF and a voltage rating of 50V.

Tolerance: ±20%
Ripple Current: 26 mA @ 120 Hz and 40.3 mA @ 100 kHz
Package: Radial, can package
Diameter: 0.157" (4.00mm)
Lead Spacing: 0.059" (1.50mm)
Polarization: Polarized
Purpose: Designed for general purpose applications.
Compliance: ROHS compliant
ECCN: EAR99
