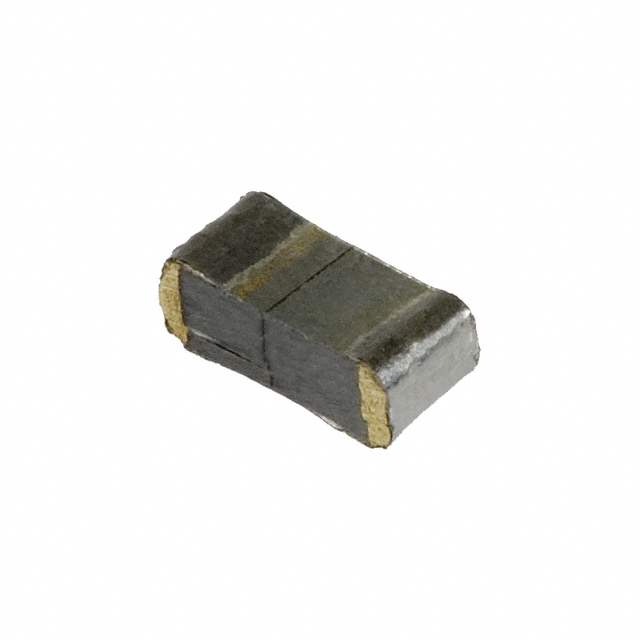

ECW-U1H683JB9 Real Image
Same model may have multiple batches, images only for reference.

ECW-U1H683JB9

Part No ECW-U1H683JB9
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.068UF 5% 50VDC 1913
Datasheet
ECW-U1H683JB9 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 0.068μF
Tolerance ±5%
Voltage Rating - DC 50V
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.087" (2.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 115381-ECW-U1H683JB9
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECW-U1H683JB9 CAD Model

Description

Overview

The ECW-U1H683JB9 offers reliable performance and excellent capacitance stability for various electronic applications. Its robust design makes it suitable for high-frequency demands.

Applications

  • Switching power supplies
  • Pulse circuits
  • Motor drives

Features and Benefits

  • Capacitance: 68,000 pF
  • High-frequency operation
  • Low ESR
  • Thermal stability

Additional Details

This capacitor delivers superior electrical characteristics, ensuring consistent performance and durability over prolonged use.
