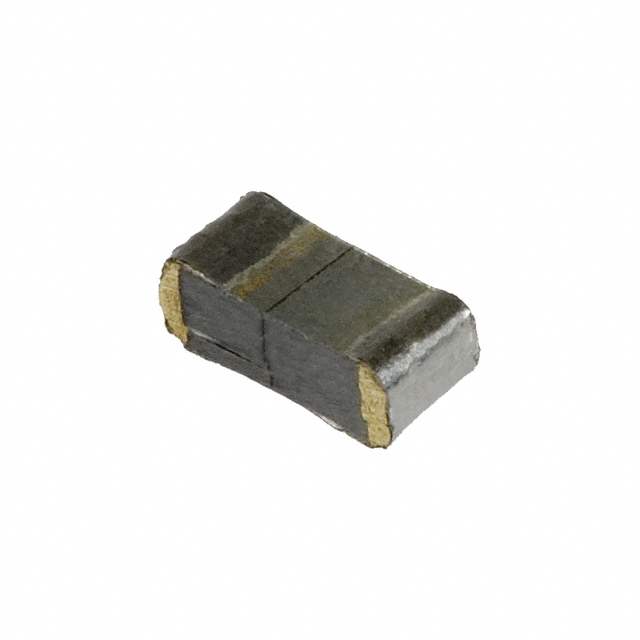

ECW-U1H682JB5 Real Image
Same model may have multiple batches, images only for reference.

ECW-U1H682JB5

Part No ECW-U1H682JB5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 6800PF 5% 50VDC 1206
Datasheet
ECW-U1H682JB5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 6800pF
Tolerance ±5%
Voltage Rating - DC 50V
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 106420-ECW-U1H682JB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECW-U1H682JB5 CAD Model

Description

Overview

The ECW-U1H682JB5 is a robust film capacitor ideal for precision circuits. It provides exceptional performance for frequency-dependent applications with its stable capacitance value.

Applications

  • AC-DC conversion circuits
  • RF filtering
  • Signal processing

Features and Benefits

  • Capacitance: 6,800 pF
  • Low dielectric absorption
  • High voltage capability
  • Operating Temperature: -55°C to 105°C

Additional Details

Engineered for high-reliability applications, this capacitor ensures long-term stability and precise performance in various electronic systems.
