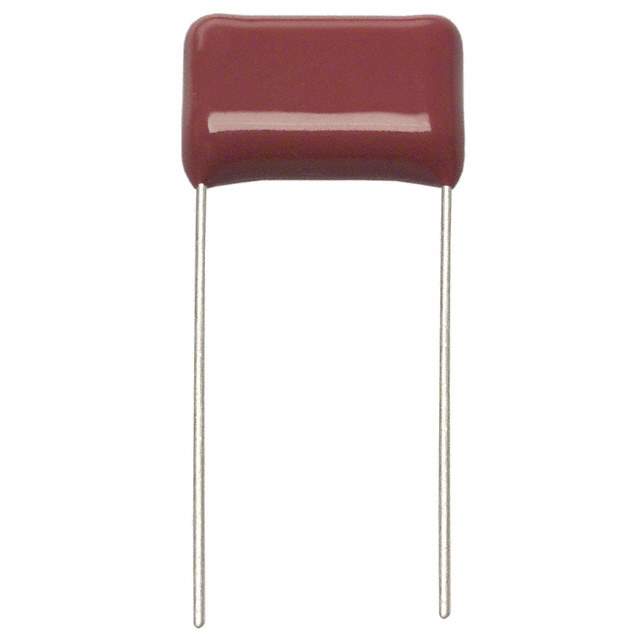

Same model may have multiple batches, images only for reference.

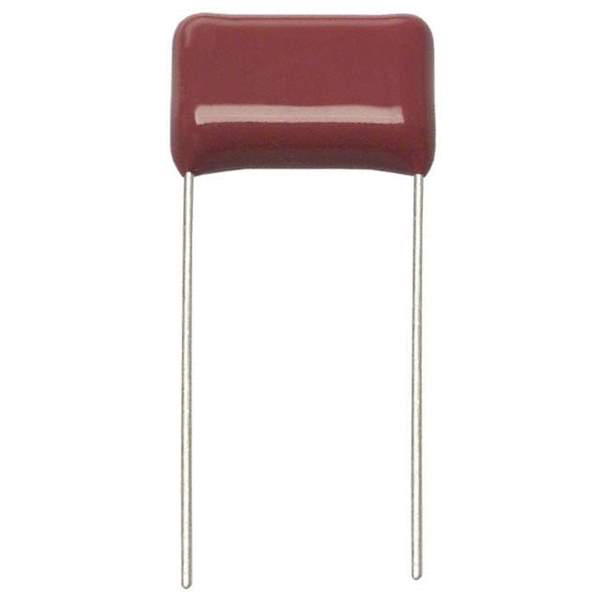

ECW-H20102JV Real Image
Same model may have multiple batches, images only for reference.

ECW-H20102JV

Part No ECW-H20102JV
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 1000PF 5% 2KVDC RADIAL / Cap Film 0.001uF 2000V PP 5% (18 X 6.5 X 13.5mm) Radial 15mm 105°C Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series ECW-H(V)
Packaging Bulk
Capacitance 1000pF
Tolerance ±5%
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
Operating Temperature Range -40°C ~ 105°C
Mounting Style Through Hole
Package Radial
Dimension 0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Maximum) 0.591" (15.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching
Win Source Part Number 775553-ECW-H20102JV
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name ECWH(V)
Introduction Date August 07, 2000
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ECW-H20102JV CAD Model

Description

The Panasonic Electronic Components ECW-H(V) capacitor.

  • Application: High frequency and switching
  • Capacitance: 1000pF
  • Tolerance: ±5%
  • Voltage Rating: 2000V (2kV) DC
  • Dielectric Material: Polypropylene (PP), metallized
  • Lead Spacing: 0.591" (15.00mm)
  • Package: Radial
  • Operating Temperature: -40°C to 105°C
